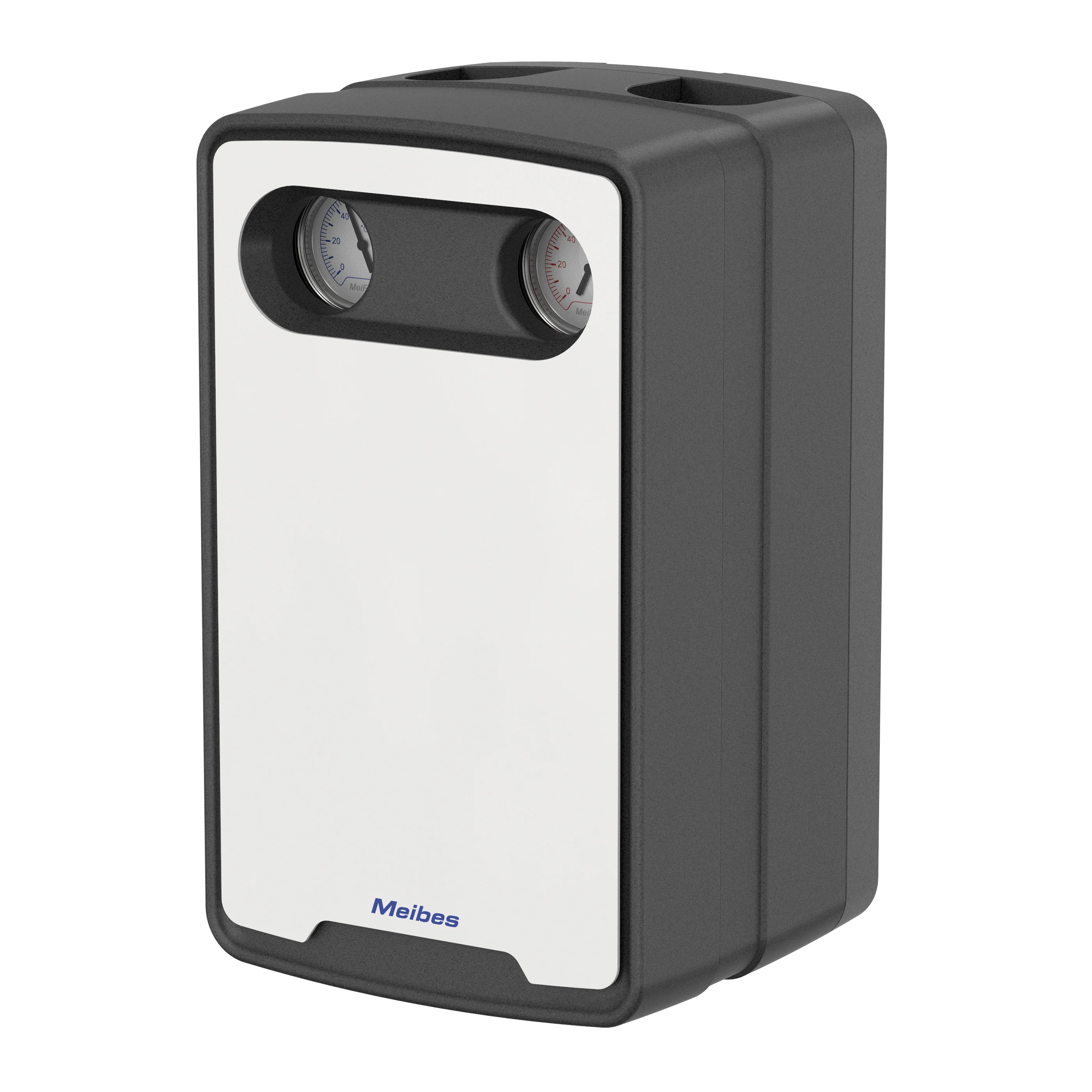

DN 25 Un Mixed Pump Group without Pump
For unmixed heating circuit and tank charging for manifold up to 70 kW or suitable for surface-mounted installation.

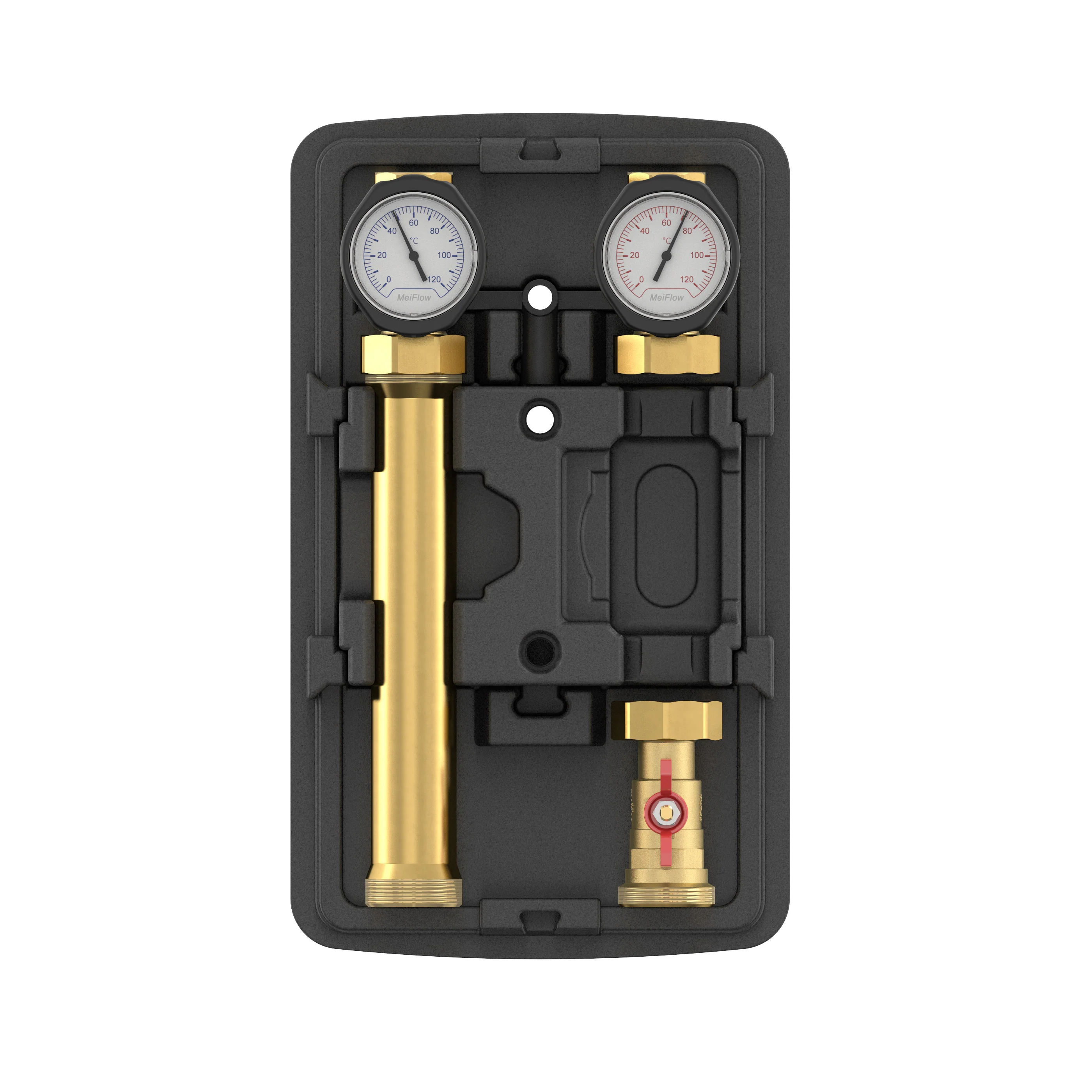

Complete with; two ball valves (on return line side with manually adjustable backflow limiter); sensor mounting to be in the flow line; two contact thermometers integrated in the ball valve handle (indicated range 0ā-ā120 Ā°C); one pump ball valve; high-quality design EPP insulation; including wall bracket; it is possible to swap flow and return line sides.
Technical Data MeiFlow Top S UC
| Specifications | ||
| DN 25 | DN 32 | |
| Dimensions HxWxD [mm] | 421 x 249 x 220 | 421 x 249 x 220 |
| Upper connections | G 1" F | G 1Ā 1ā4" F |
| Lower connection | G 1Ā 1ā2" M | G 1Ā 1ā2" M |
| Axial distance [mm] | 125 | 125 |
| Max. operating temperature [Ā°C] | 110* | 110* |
| Permissible positive operating pressure [PN] | 6 | 6 |
| Thermometers [Ā°C] | 0 - 120 | 0 - 120 |
| Components made of | Steel, brass, EPP insulation | Steel, brass, EPP insulation |
| Sealing materials | PTFE, EPDM | PTFE, EPDM |
| Installed length of pump [mm] | 180 | 180 |
| Kvs value [m3/h] | 7.8 | 8.0 |
| Sensor mounting | M10x1 | M10x1 |
*Ā Depends on the pump used.
