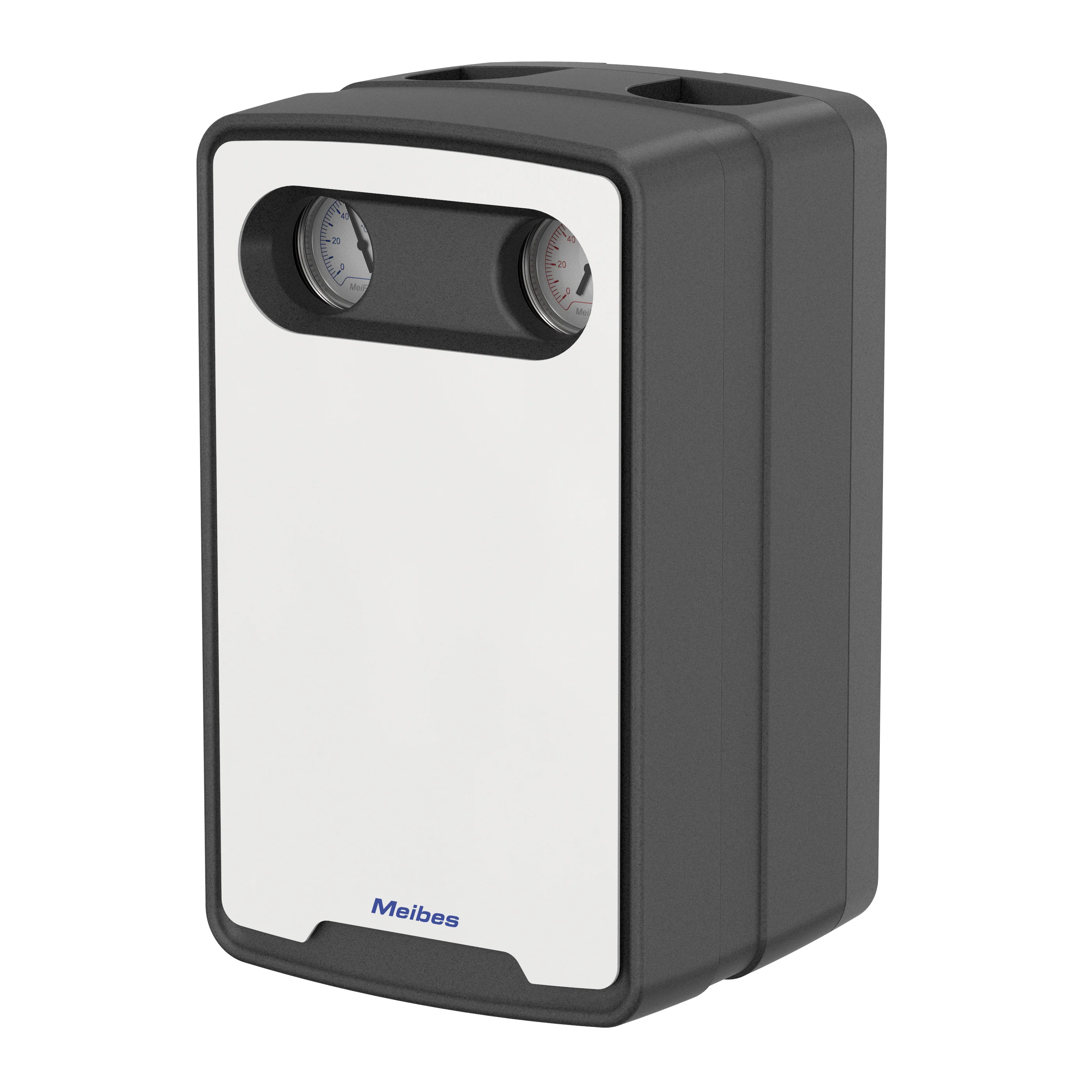

MeiFlow Top S MC, DN32, with Wilo Yonos PICO Plus 30/1-6 (MIXED) M66932.10WI

In-stock, Contact for Quote - Live Chat / 01985 850982

For mixed heating circuits for manifolds up to 70 kW or suitable for surface-mounted installation.

Top S MC DN 32
With Wilo Yonos PICO Plus 30/1-6
DN32   / G 1 1⁄4" F

Specifications	DN 32
Dimensions HxWxD [mm]	421 x 249 x 220
Upper connections	G 1 1⁄4" F
Lower connection	G 1 1⁄2" M
Axial distance [mm]	125
Max. operating temperature [°C]	110*
Permissible positive operating pressure [PN]	6
Thermometers [°C]	0 - 120
Components made of	Steel, brass, EPP insulation
Sealing materials	PTFE, EPDM
Installed length of pump [mm]	180
Kvs value [m3/h]	6.0
Sensor mounting	M10x1

Complete with recirculating pump including angled connector; two ball valves (on return line side with manually adjustable backflow limiter); sensor mounting to be in the flow line; two contact thermometers integrated in the ball valve handle (indicated range 0 - 120 °C); 3-way T-mixer with continuously adjustable bypass; design EPP insulation; including wall bracket; it is possible to swap flow and return line sides.

Manuals - Installation and operating instruction
