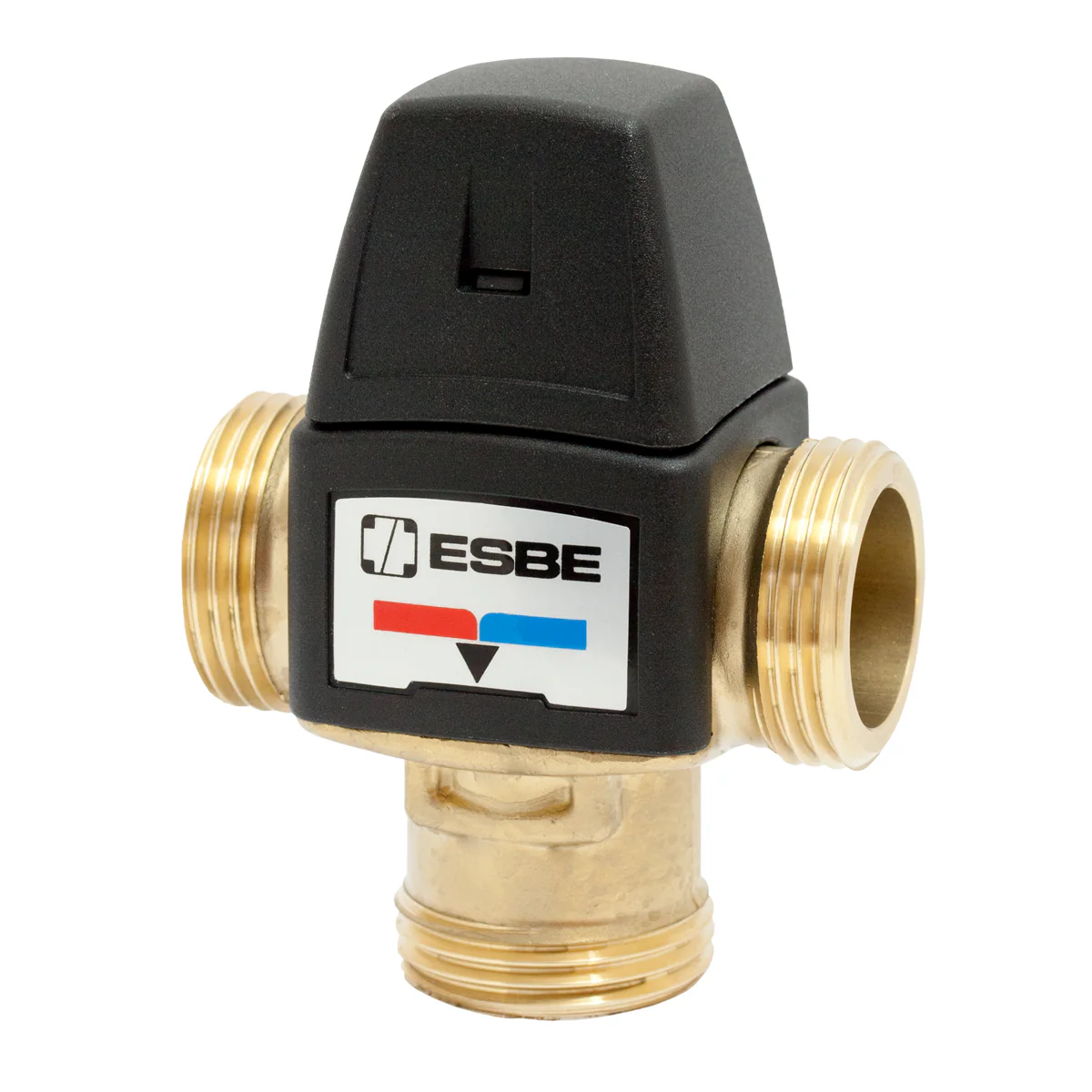

ESBE VTA352 External thread Thermostatic mixing valve
Direct from ESBE - Call to check availability or alternative models: Live Chat / 01985 850982
ESBE VTA352 35-60°C G1 20-1,4 CV
- Anti-scald and anti-legionella protection.
- Accuracy of regulation.
- Suitable for HWC (hot water circulation).
The series VTA350/VTA550 for domestic hot water distribution, anti-scalded tempering in line applications and where further temperature control devices have been installed at the water taps. These series of valves are also suitable for domestic hot water installations equipped with HWC (hot water circulation).
| Art.no. | Reference | Temp. range [⁰C] | Kvs | Connection E | A [mm] | B [mm] | C [mm] | D [mm] | F [mm] | Weight [kg] | Note |
| 31106100 | VTA352 | 35 - 60 | 1,5 | G 1" | 70 | 42 | 52 |
46 |
74 | 0,48 | Two checkvalves for both hot and cold water are integrated |
| 31105000 | VTA352 | 35 - 60 | 1,5 | G ¾" | 70 | 42 | 52 | 46 | 0,45 |
| 31105100 | VTA352 | 35 - 60 | 1,6 | G 1" | 70 | 42 | 52 | 46 | 0,48 |
Select Title
From $28.67
Original: $95.56
-70%ESBE VTA352 External thread Thermostatic mixing valve—
$95.56
$28.67Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Direct from ESBE - Call to check availability or alternative models: Live Chat / 01985 850982
ESBE VTA352 35-60°C G1 20-1,4 CV
- Anti-scald and anti-legionella protection.
- Accuracy of regulation.
- Suitable for HWC (hot water circulation).
The series VTA350/VTA550 for domestic hot water distribution, anti-scalded tempering in line applications and where further temperature control devices have been installed at the water taps. These series of valves are also suitable for domestic hot water installations equipped with HWC (hot water circulation).
| Art.no. | Reference | Temp. range [⁰C] | Kvs | Connection E | A [mm] | B [mm] | C [mm] | D [mm] | F [mm] | Weight [kg] | Note |
| 31106100 | VTA352 | 35 - 60 | 1,5 | G 1" | 70 | 42 | 52 |
46 |
74 | 0,48 | Two checkvalves for both hot and cold water are integrated |
| 31105000 | VTA352 | 35 - 60 | 1,5 | G ¾" | 70 | 42 | 52 | 46 | 0,45 |
| 31105100 | VTA352 | 35 - 60 | 1,6 | G 1" | 70 | 42 | 52 | 46 | 0,48 |
