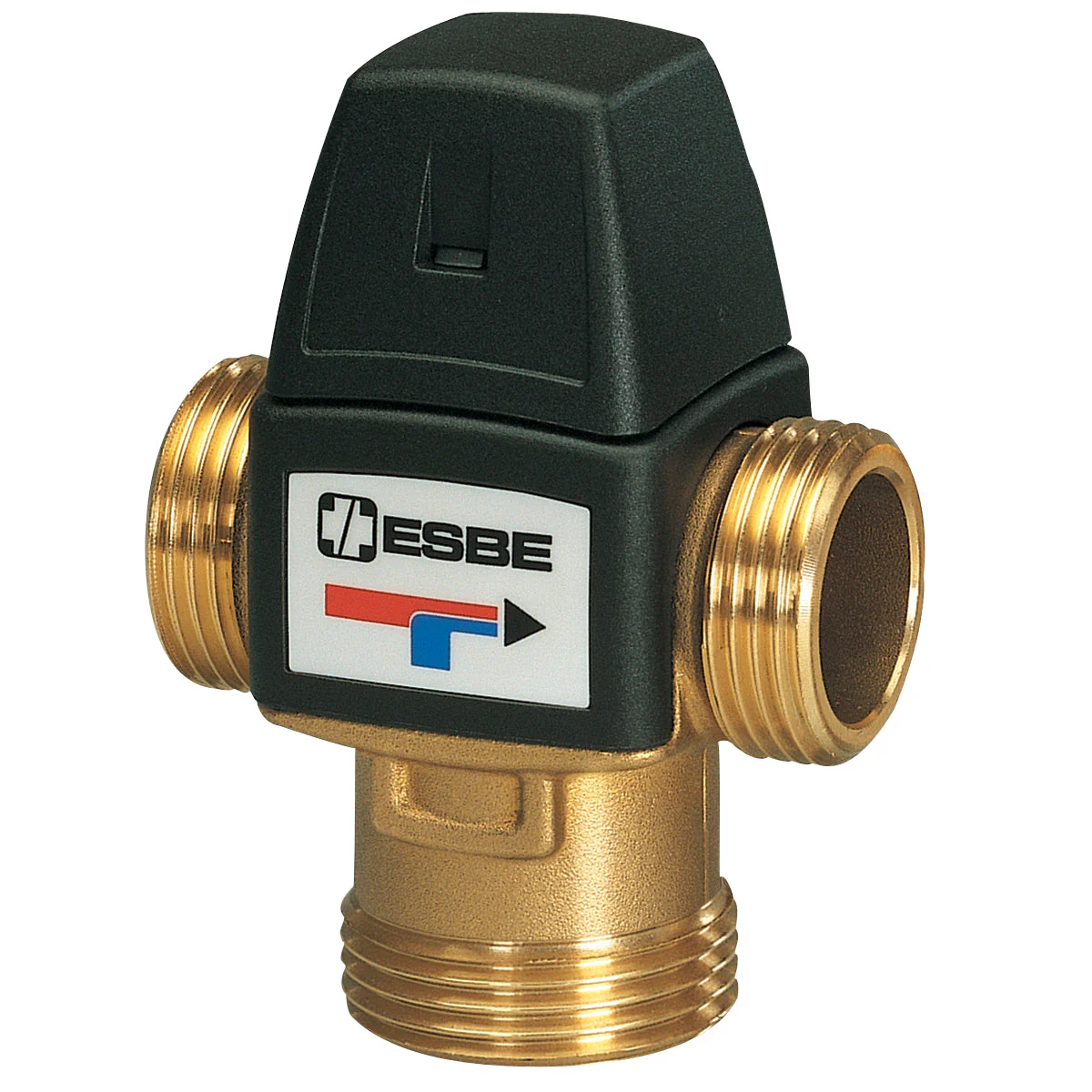

ESBE VTA321 & VTA322 LeadFree, Internal thread & External thread Thermostatic mixing valve
Direct from ESBE - Call to check availability or alternative models: Live Chat / 01985 850982
ESBE VTA313 & VTA321
- Anti-scald and anti-legionella protection.
- Accuracy of regulation.
- Suitable for HWC (hot water circulation).
- Now available in lead-free versions
The series VTA320/VTA520 for domestic hot water distribution, anti-scalded tempering in line applications and where further temperature control devices have been installed at the water taps. These series of valves are also suitable for domestic hot water installations equipped with HWC (hot water circulation).
VTA321 LeadFree, Internal thread
| Art.no. | Reference | Temp. range [⁰C] | Kvs | Connection E | A [mm] | B [mm] | C [mm] | D [mm] | Weight [kg] | Note |
| 32100800 | VTA321 LF | 35 - 60 | 1,6 | Rp ¾" | 70 | 42 | 46 | 46 | 0,48 | Lead free brass |
VTA321, Internal thread
| Art.no. | Reference | Temp. range [⁰C] | Kvs | Connection E | A [mm] | B [mm] | C [mm] | D [mm] | Weight [kg] | Note |
| 31100300 | VTA321 | 20 - 43 | 1,5 | Rp ½" | 70 | 42 | 52 | 46 | 0,45 | Replaces 472L. |
| 31100700 | VTA321 | 20 - 43 | 1,6 | Rp ¾" | 70 | 42 | 52 | 46 | 0,48 | Replaces 474L. |
| 31100400 | VTA321 | 35 - 60 | 1,5 | Rp ½" | 70 | 42 | 52 | 46 | 0,45 | Replaces 406 |
| 31100800 | VTA321 | 35 - 60 | 1,6 | Rp ¾" | 70 | 42 | 52 | 46 | 0,48 | Replaces 407 |
VTA322 LeadFree, External thread
| Art.no. | Reference | Temp. range [⁰C] | Kvs | Connection E | A [mm] | B [mm] | C [mm] | D [mm] | Weight [kg] | Note |
| 32100600 | VTA322 LF | 35 - 60 | 1,5 | G ¾" | 70 | 42 | 52 | 46 | 0,45 | Lead free brass |
| 32101000 | VTA322 LF | 35 - 60 | 1,6 | G 1“ | 70 | 42 | 52 | 46 | 0,48 | Lead free brass |
VTA322 External thread
| Art.no. | Reference | Temp. range [⁰C] | Kvs | Connection E | A [mm] | B [mm] | C [mm] | D [mm] | Weight [kg] | Note |
| 31102800 | VTA322 | 20 - 43 | 1,2 | G ½" | 70 | 42 | 52 | 46 | 0,41 | Replaces 410L. |
| 31100500 | VTA322 | 20 - 43 | 1,5 | G ¾" | 70 | 42 | 52 | 46 | 0,45 | Replaces 471L. |
| 31100900 | VTA322 | 20 - 43 | 1,6 | G 1" | 70 | 42 | 52 | 46 | 0,48 | Replaces 475L. |
| 31620100 | VTA522 | 20 - 43 | 3,2 | G 1" | 84 | 62 | 60 | 56 | 0,86 | Replaces 31301600. |
| 31620400 | VTA522 | 20 - 43 | 3,5 | G 1¼" | 84 | 62 | 60 | 56 | 0,95 | |
| 31103200 | VTA322 | 30 - 70 | 1,6 | G 1" | 70 | 42 | 52 | 46 | 0,53 | |
| 31102900 | VTA322 | 35 - 60 | 1,2 | G ½" | 70 | 42 | 52 | 46 | 0,41 | |
| 31100600 | VTA322 | 35 - 60 | 1,5 | G ¾" | 70 | 42 | 52 | 46 | 0,45 | Replaces 471 |
| 31101000 | VTA322 | 35 - 60 | 1,6 | G 1" | 70 | 42 | 52 | 46 | 0,48 | Replaces 475 |
| 31104700 | VTA322 | 45 - 65 | 1,6 | G 1" | 70 | 42 | 52 | 46 | 0,55 |
