ESBE Heat Pump Actuator 2-point (on/off) / Switch Live Signal Only / Diverting Only

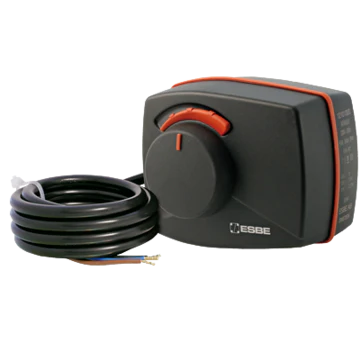

ESBE Actuator ARA600: A reliable and quiet solution for 2-point/3-point control. Perfectly matched with ESBE valves. Designed for diverting with VRG230 valves, compact for DN 15-50 rotary valves. Manual knob operation and optional auxiliary switch. Discover our products today.
Rotary Actuators to Suit VRG Valves
2-POINT (ON/OFF) /SWITCH LIVE SIGNAL ONLY / DIVERTING ONLY
Available Options - Contact us for a quoteÂ
- 12121200 ESBE ARA656 2-P SPST 230VAC 6NM 60S AUX SWITCH
-
12120900 ESBE ARA655 2-P SPST 230VAC 6NM 60SÂ (Best Match forÂ
heat pumps ) - 12120800 ESBE ARA645 2-POINT SPST 230VAC 6NM 30S
- 12121100 ESBE ARA646 2-P SPST 230VAC 6NM 30S AUX SWITCH
ARA Actuator - Internal JumperÂ
All ESBE actuators are pre-set in mid-position. Â
During set-up, ensure that the valve spindle is in between the two outlet ports prior to mounting the actuator.
To change the switch live direction of travel for DHW demand, an internal jumper within the actuator will need to be altered 90 degrees.Â
Please refer to page 8 of the ARA 2-point Actuator InstructionÂ
Manual for further details.
| Type | Preview | Download |
| Data sheet | ARA600, 2-point |  |
| Installation instruction | ARA600, 2-point | |
| Installation instruction | Auxiliary switch | |
| Certificate | Declaration of Conformity ARA600, 2-point | |
| Certificate | Declaration of Conformity UK CA, ARA600, 2-point | |
| Certificate | Building Product Declaration BPD3 | |
| Certificate | EAC certificate (RU), 230V | |
| Certificate | EAC certificate (RU), 12-24V | |
| Certificate | UKRSEPRO certificate (UA) | |
| Image | ARA600, high res |  |
| Image | ARA600 auxiliary switch, high res |  |
| 2D Image | ARA600 |  |
| 3D drawing (stp file) | ARA6x1, ARA6x3, ARA6x5, ARA6x7, ARA6x9 with CW scale position | |
| 3D drawing (stp file) | ARA6x2, ARA6x4, ARA6x6, ARA6x8 with CW scale position | |
| 3D drawing (stp file) | ARA6x1, ARA6x3, ARA6x5, ARA6x7, ARA6x9 with CCW scale position | |
| 3D drawing (stp file) | ARA6x2, ARA6x4, ARA6x6, ARA6x8 with CCW scale position | |
Original: $240.58
-70%$240.58
$72.17Product Information
