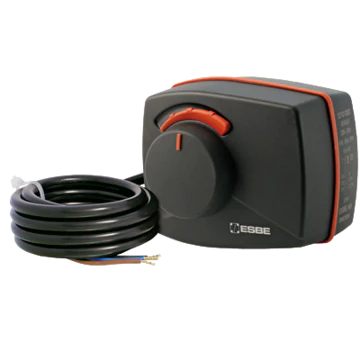

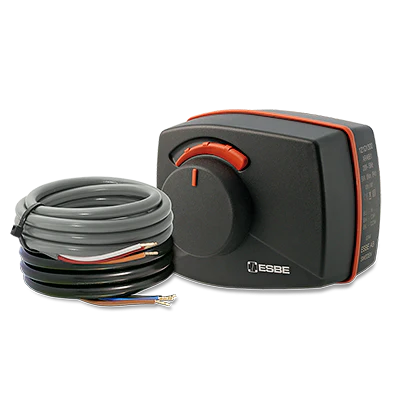

ESBE ARA600 Actuator 2 - Point / 3 - Point 24 V, 230V
Actuator
ARA600 2-point
- Reliable and quiet operation.
- Can be used for both 2-point and 3-point control signal.
- Perfect match between the actuator and ESBE valve.
- Auxiliary switch available.
Series ARA600 with 2-point (on/off) signal is suitable for diverting operations together with valves such as VRG230. In these applications will only the end-positions of the actuator operating range be used. The compact actuator is designed for operating rotary valves DN 15-50 and has an operating range of 90°. The series can easily be manually operated by the pull-and-turn knob on the front of the cover. Auxiliary switch, available as premounted or optional kit, can be set in any position and is easily set by a unique solution.
Product range
ARA600, 2-point 230V
| Art.no. | Reference | Voltage [V AC] | Running time 90° [s] | Control signal | Torque [Nm] | Note |
| 12120700 | ARA635 | 230 | 15 | 2-point SPST | 3 | Recommended only for valves DN 15-32. |
| 12121000 | ARA636 | 230 | 15 | 2-point SPST | 3 | With premounted auxiliary switch. Recommended only for valves DN 15-32. |
| 12120800 | ARA645 | 230 | 30 | 2-point SPST | 6 | |
| 12121100 | ARA646 | 230 | 30 | 2-point SPST | 6 | With premounted auxiliary switch. |
| 12120900 | ARA655 | 230 | 60 | 2-point SPST | 6 | Replaces 12002700 |
| 12121200 | ARA656 | 230 | 60 | 2-point SPST | 6 | With premounted auxiliary switch. Replaces 12002900. |
ARA600, 2-point 24 V
| Art.no. | Reference | Voltage [V AC] | Running time 90° [s] | Control signal | Torque [Nm] | Note |
| 12120100 | ARA637 | 24 | 15 | 2-point SPST | 3 | Recommended only for valves DN 15-32. |
| 12120200 | ARA647 | 24 | 30 | 2-point SPST | 6 | |
| 12120600 | ARA658 | 24 | 60 | 2-point SPST | 6 | With premounted auxiliary switch. |
Downloads
| Type | Preview | Download |
| Data sheet | ARA600, 2-point |  |
| Installation instruction | ARA600, 2-point | |
| Installation instruction | Auxiliary switch | |
| Certificate | Declaration of Conformity ARA600, 2-point | |
| Certificate | Declaration of Conformity UK CA, ARA600, 2-point | |
| Certificate | Building Product Declaration BPD3 | |
| Certificate | EAC certificate (RU), 230V | |
| Certificate | EAC certificate (RU), 12-24V | |
| Certificate | UKRSEPRO certificate (UA) | |
| Image | ARA600, high res |  |
| Image | ARA600 auxiliary switch, high res |  |
| 2D Image | ARA600 |  |
| 3D drawing (stp file) | ARA6x1, ARA6x3, ARA6x5, ARA6x7, ARA6x9 with CW scale position | |
| 3D drawing (stp file) | ARA6x2, ARA6x4, ARA6x6, ARA6x8 with CW scale position | |
| 3D drawing (stp file) | ARA6x1, ARA6x3, ARA6x5, ARA6x7, ARA6x9 with CCW scale position | |
| 3D drawing (stp file) | ARA6x2, ARA6x4, ARA6x6, ARA6x8 with CCW scale position | |
