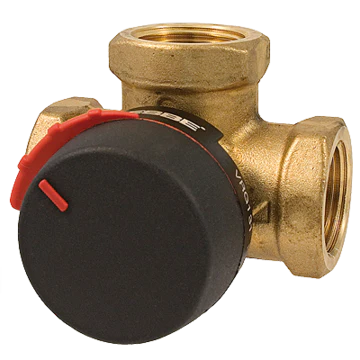

The ESBE VRG131 3-way mixing valve is part of the ESBE VRG130 series and is designed for mixing or diverting operation in heating and cooling systems. These high-quality rotary valves are manufactured from durable brass and are widely used in heating systems to control water temperature and manage flow between circuits.

The VRG130 series is available in sizes from DN15 to DN50 and offers a range of connection options to suit most pipe dimensions and installation requirements. These valves are commonly used in boiler systems, heat pump installations and underfloor heating applications where accurate temperature control is required.

The ESBE VRG131 mixing valve can be perfectly combined with ESBE actuators and controllers to create reliable temperature control solutions for professional heating installations.

Other ESBE VRG Valves

• ESBE VRG132 Mixing & Diverting Valve
• ESBE VRG133 Mixing & Diverting Valve
• ESBE VRG231 Diverting Valve
• ESBE VRG232 Diverting Valve

Download

Data sheet	VRG130
Installation instruction	VRG130

VRG131, Internal thread / Female Thread

Art.no.	Reference	DN	Kvs	Connection	A [mm]	B [mm]	C [mm]	D [mm]	E [mm]	Weight [kg]	Replaces	Note
11600100	VRG131	15	0,4	Rp ½”	36	72	32	50	36	0,40
11600200	VRG131	15	0,63	Rp ½”	36	72	32	50	36	0,40	11000200
11600300	VRG131	15	1	Rp ½”	36	72	32	50	36	0,40	11000300
11600400	VRG131	15	1,6	Rp ½”	36	72	32	50	36	0,40	11000400, 11000500
11600500	VRG131	15	2,5	Rp ½”	36	72	32	50	36	0,40	11000100
11600600	VRG131	15	4	Rp ½”	36	72	32	50	36	0,40
11600700	VRG131	20	2,5	Rp ¾”	36	72	32	50	36	0,43
11600800	VRG131	20	4	Rp ¾”	36	72	32	50	36	0,43	11000700
11600900	VRG131	20	6,3	Rp ¾”	36	72	32	50	36	0,43	11001100, 11050100
11601000	VRG131	25	6,3	Rp 1"	41	82	34	52	41	0,70	11001600
11601100	VRG131	25	10	Rp 1"	41	82	34	52	41	0,70	11002400, 11050200
11601200	VRG131	32	16	Rp 1¼”	47	94	37	55	47	0,95	11002700, 11050300
11603400	VRG131	40	25	Rp 1½”	53	106	44	62	53	1,68	11050400, 11601300
11603600	VRG131	50	40	Rp 2"	60	120	46	64	60	2,30	11050600, 11601400

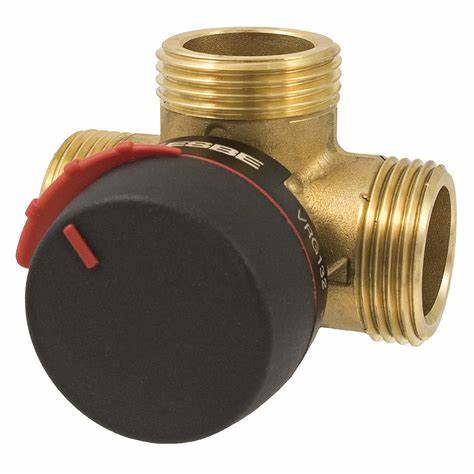

VRG132, External thread

Art.no.	Reference	DN	Kvs	Connection	A [mm]	B [mm]	C [mm]	D [mm]	E [mm]	Weight [kg]	Replaces	Note
11601500	VRG132	15	0,4	G ¾"	36	72	32	50	36	0,40
11601600	VRG132	15	0,63	G ¾"	36	72	32	50	36	0,40
11601700	VRG132	15	1	G ¾"	36	72	32	50	36	0,40
11601800	VRG132	15	1,6	G ¾"	36	72	32	50	36	0,40
11601900	VRG132	15	2,5	G ¾"	36	72	32	50	36	0,40
11602000	VRG132	15	4	G ¾"	36	72	32	50	36	0,40
11602100	VRG132	20	2,5	G 1"	36	72	32	50	36	0,43
11602200	VRG132	20	4	G 1"	36	72	32	50	36	0,43
11602300	VRG132	20	6,3	G 1"	36	72	32	50	36	0,43	11001300
11602400	VRG132	25	6,3	G 1¼"	41	82	34	52	41	0,70
11602500	VRG132	25	10	G 1¼"	41	82	34	52	41	0,70	11002600
11602600	VRG132	32	16	G 1½"	47	94	37	55	47	0,95	11002900
11603500	VRG132	40	25	G 2"	53	106	44	62	53	1,69	11602700
11603700	VRG132	50	40	G 2¼"	60	120	46	64	60	2,30	11602800

VRG133, Compression fitting

Art.no.	Reference	DN	Kvs	Connection	A [mm]	B [mm]	C [mm]	D [mm]	E [mm]	Weight [kg]	Replaces
11606000	VRG133	20	1,6	CPF 22 mm	36	72	32	50	36	0,40
11606100	VRG133	20	2,5	CPF 22 mm	36	72	32	50	36	0,40
11602900	VRG133	20	4	CPF 22 mm	36	72	32	50	36	0,40
11603000	VRG133	20	6,3	CPF 22 mm	36	72	32	50	36	0,40	11002100
11603100	VRG133	25	10	CPF 28 mm	41	82	34	52	41	0,45	11002300

VRG138, Rotating nut and external thread

Art.no.	Reference	DN	Kvs	Connection	A [mm]	B [mm]	C [mm]	D [mm]	E [mm]	Weight [kg]	Replaces
11603800	VRG138	20	4	2x RN 1" + G 1"	36	72	32	50	36	0,56
11604100	VRG138	20	6,3	3x RN 1"	36	72	32	50	36	0,59	11001500
