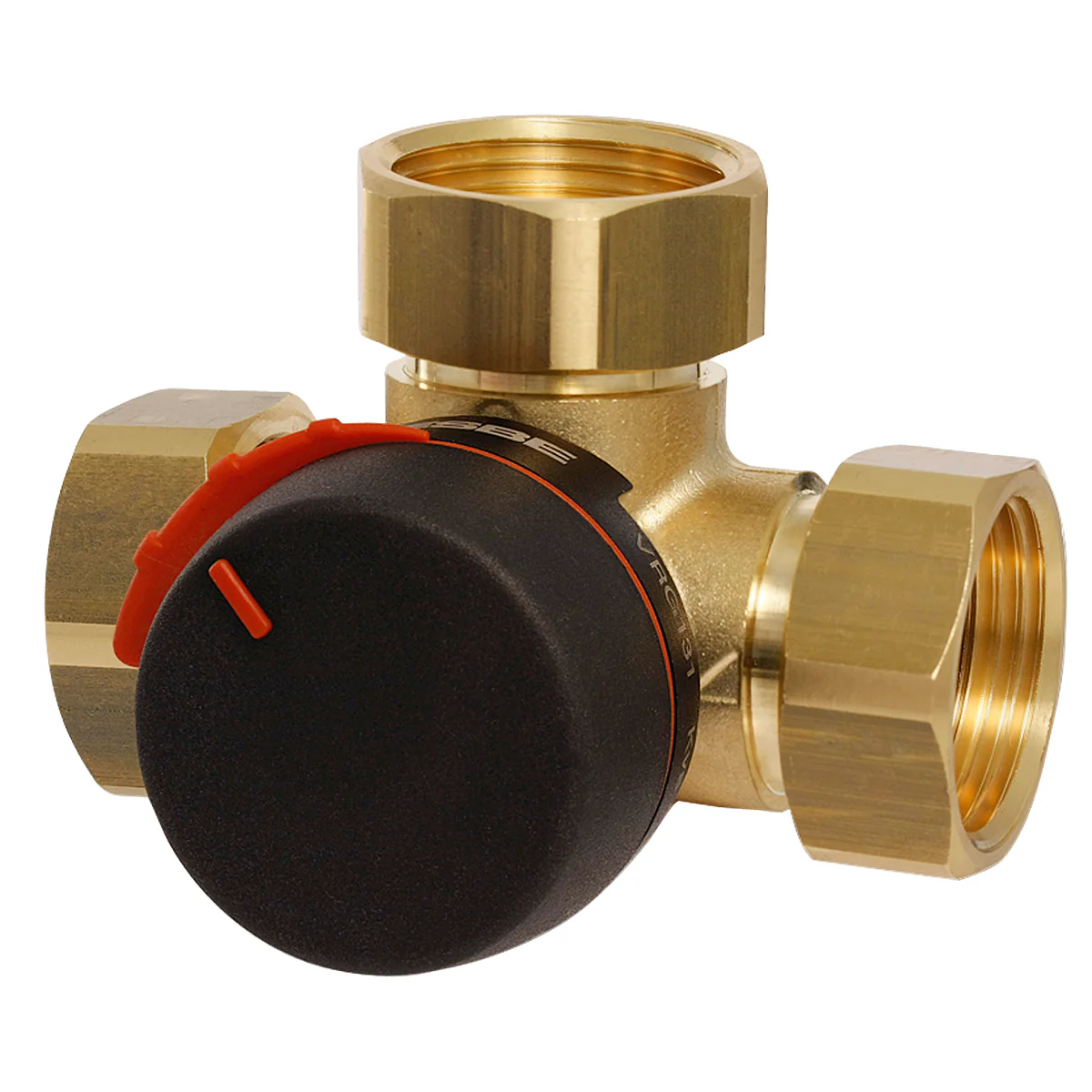

ESBE VRG131 3-Way Mixing Valve for Heating Systems (Female Thread)

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7

ESBE VRG131 3-Way Mixing Valve for Heating Systems (Female Thread)

The ESBE VRG131 3-way mixing valve is part of the ESBE VRG130 series and is designed for mixing or diverting operation in heating and cooling systems. These high-quality rotary valves are manufactured from durable brass and are widely used in heating systems to control water temperature and manage flow between circuits.

The VRG130 series is available in sizes from DN15 to DN50 and offers a range of connection options to suit most pipe dimensions and installation requirements. These valves are commonly used in boiler systems, heat pump installations and underfloor heating applications where accurate temperature control is required.

The ESBE VRG131 mixing valve can be perfectly combined with ESBE actuators and controllers to create reliable temperature control solutions for professional heating installations.

Other ESBE VRG Valves

• ESBE VRG132 Mixing & Diverting Valve
• ESBE VRG133 Mixing & Diverting Valve
• ESBE VRG231 Diverting Valve
• ESBE VRG232 Diverting Valve

Download

Data sheet VRG130
Installation instruction VRG130

VRG131, Internal thread / Female Thread

Prod_VRG131_VRG331_verA_issueA_lr.pngVRG130 side_A-01.pngVRG130 front_B-01.png
Art.no. Reference DN Kvs Connection A [mm] B [mm] C [mm] D [mm] E [mm] Weight [kg] Replaces Note
11600100 VRG131 15 0,4 Rp ½” 36 72 32 50 36 0,40
11600200 VRG131 15 0,63 Rp ½” 36 72 32 50 36 0,40 11000200
11600300 VRG131 15 1 Rp ½” 36 72 32 50 36 0,40 11000300
11600400 VRG131 15 1,6 Rp ½” 36 72 32 50 36 0,40 11000400, 11000500
11600500 VRG131 15 2,5 Rp ½” 36 72 32 50 36 0,40 11000100
11600600 VRG131 15 4 Rp ½” 36 72 32 50 36 0,40
11600700 VRG131 20 2,5 Rp ¾” 36 72 32 50 36 0,43
11600800 VRG131 20 4 Rp ¾” 36 72 32 50 36 0,43 11000700
11600900 VRG131 20 6,3 Rp ¾” 36 72 32 50 36 0,43 11001100, 11050100
11601000 VRG131 25 6,3 Rp 1" 41 82 34 52 41 0,70 11001600
11601100 VRG131 25 10 Rp 1" 41 82 34 52 41 0,70 11002400, 11050200
11601200 VRG131 32 16 Rp 1¼” 47 94 37 55 47 0,95 11002700, 11050300
11603400 VRG131 40 25 Rp 1½” 53 106 44 62 53 1,68 11050400, 11601300
11603600 VRG131 50 40 Rp 2" 60 120 46 64 60 2,30 11050600, 11601400

VRG132, External thread

Prod_VRG132_VRG332_verA_issueA_lr.pngVRG130 front_B-01.pngVRG130 side_A-01.png
Art.no. Reference DN Kvs Connection A [mm] B [mm] C [mm] D [mm] E [mm] Weight [kg] Replaces Note
11601500 VRG132 15 0,4 G ¾" 36 72 32 50 36 0,40
11601600 VRG132 15 0,63 G ¾" 36 72 32 50 36 0,40
11601700 VRG132 15 1 G ¾" 36 72 32 50 36 0,40
11601800 VRG132 15 1,6 G ¾" 36 72 32 50 36 0,40
11601900 VRG132 15 2,5 G ¾" 36 72 32 50 36 0,40
11602000 VRG132 15 4 G ¾" 36 72 32 50 36 0,40
11602100 VRG132 20 2,5 G 1" 36 72 32 50 36 0,43
11602200 VRG132 20 4 G 1" 36 72 32 50 36 0,43
11602300 VRG132 20 6,3 G 1" 36 72 32 50 36 0,43 11001300
11602400 VRG132 25 6,3 G 1¼" 41 82 34 52 41 0,70
11602500 VRG132 25 10 G 1¼" 41 82 34 52 41 0,70 11002600
11602600 VRG132 32 16 G 1½" 47 94 37 55 47 0,95 11002900
11603500 VRG132 40 25 G 2" 53 106 44 62 53 1,69 11602700
11603700 VRG132 50 40 G 2¼" 60 120 46 64 60 2,30 11602800

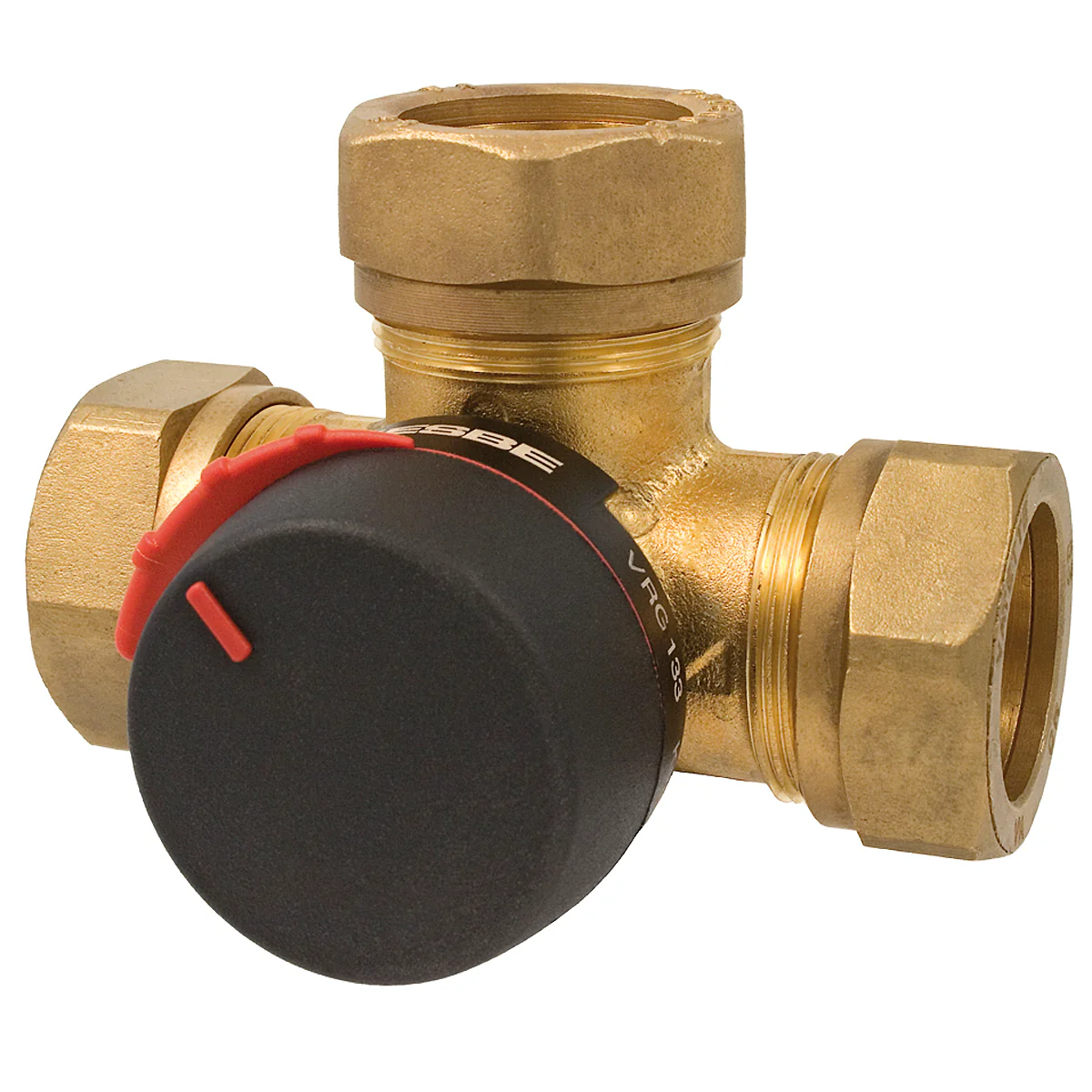

VRG133, Compression fitting

Prod_VRG133_verA_issueA_lr.pngVRG130 front_B-01.pngVRG130 side_A-01.png
Art.no. Reference DN Kvs Connection A [mm] B [mm] C [mm] D [mm] E [mm] Weight [kg] Replaces
11606000 VRG133 20 1,6 CPF 22 mm 36 72 32 50 36 0,40
11606100 VRG133 20 2,5 CPF 22 mm 36 72 32 50 36 0,40
11602900 VRG133 20 4 CPF 22 mm 36 72 32 50 36 0,40
11603000 VRG133 20 6,3 CPF 22 mm 36 72 32 50 36 0,40 11002100
11603100 VRG133 25 10 CPF 28 mm 41 82 34 52 41 0,45 11002300

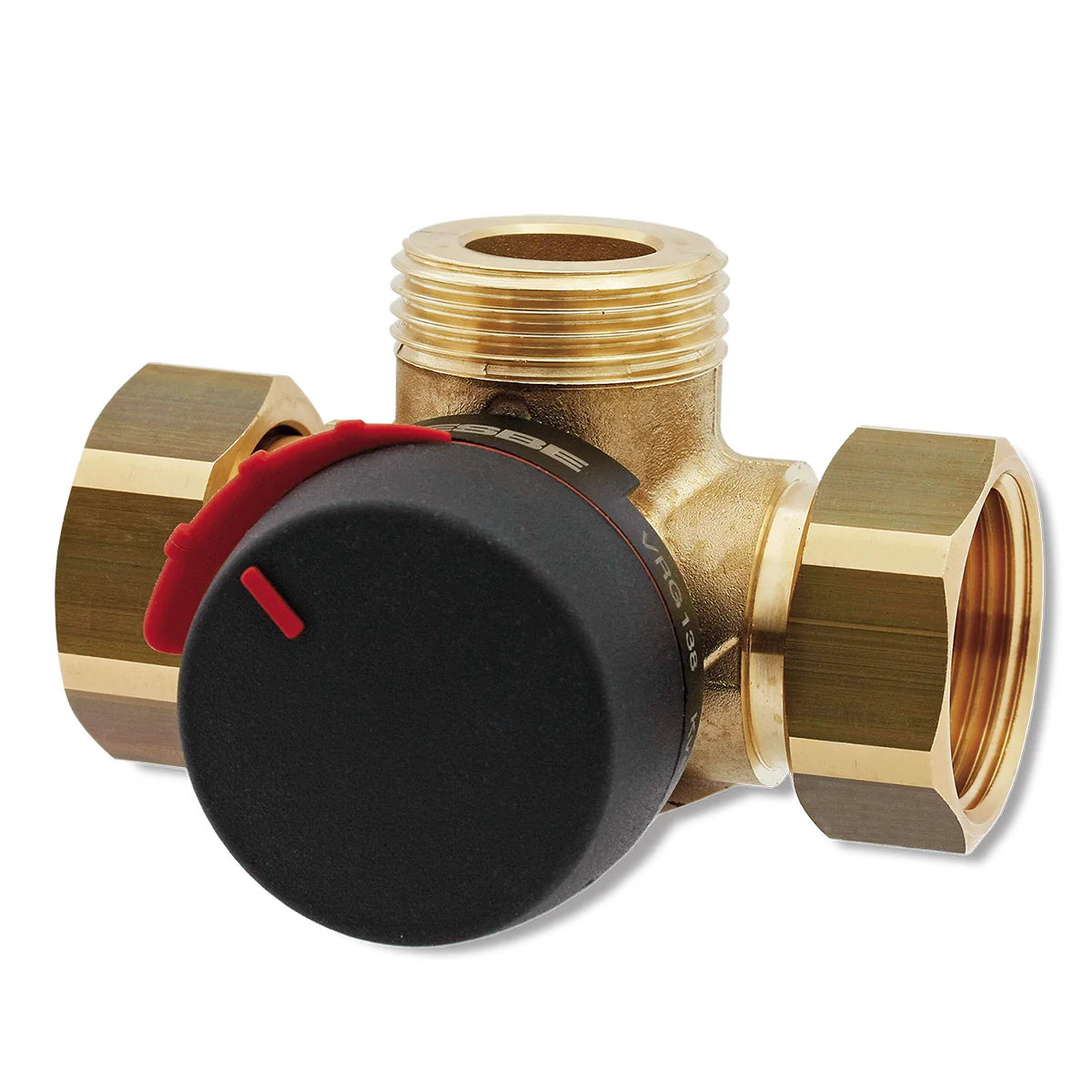

VRG138, Rotating nut and external thread

VRG138_2RN.pngVRG138_VRG338_verA_issueA_lr.pngVRG138 front_B-01.png
VRG138 side_A-01.png
Art.no. Reference DN Kvs Connection A [mm] B [mm] C [mm] D [mm] E [mm] Weight [kg] Replaces
11603800 VRG138 20 4 2x RN 1" + G 1" 36 72 32 50 36 0,56
11604100 VRG138 20 6,3 3x RN 1" 36 72 32 50 36 0,59 11001500
