Viessmann Dirt separator with magnet (1 1/4" internal threaded connection)

Please call to check availability before ordering Live Chat / 01985 850982

Dirt separator with magnet Rp 1¼" IG
Removal of magnetic and non-magnetic dirt particles (from 5 µm) from heating and cooling circuits.

Viessmann dirt separator Rp 1¼" IG

Dirt separator with magnet for removing magnetic and non-magnetic dirt particles from 5 µm from heating and cooling circuits.

• With removable magnet (in cleaning mode) on the outside.

• With drain cock to remove the collected sludge and magnetic particles, also possible during system operation.
• With rotatable connection mechanism, installation possible in horizontal, vertical and diagonal lines.
• With thermal insulation according to EnEV, consisting of two EPP half-shells.
• Usable medium: water or glycol-water mixture up to 50/50%

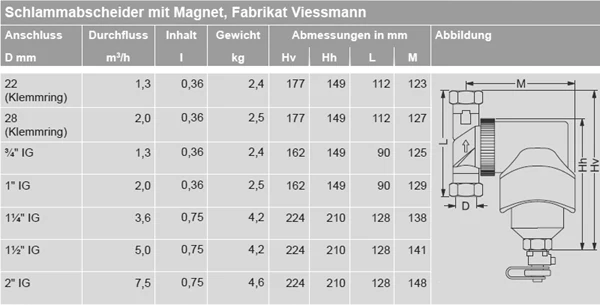

Connection Rp: 1¼" IG
Housing: brass
Installation length (without thermal insulation): 128 mm
Max. operating pressure: 10 bar
Max. operating temperature: 110 degrees C
Max. throughput: 3.6 m³/h

Order No.: ZK04657
