RF Pack c/w R27-RF, B328PF, RFR, RFC & WC2 Y Plan RF Heating Control Packs

Product image 1
Product image 2
Product image 3
Product image 4

RF Pack c/w R27-RF, B328PF, RFR, RFC & WC2 Y Plan RF Heating Control Packs

Direct from EPH - Delivery Lead time 4-5 Working days :Ā  Live ChatĀ /Ā 01985 850982

Ā

1 xĀ B328PF - 3 Port 28mm Mid Position / Diverter Valve

3 port compression motorised valves with detachable actuator and detachable cable. These motorised valves are the perfect solution for zoning your hot water or central heating circuits.

Technical Data

PRODUCT CODE CONNECTION TYPE FLOW RATE MAX. CLOSE OFF PRESSURE*
B328PF 28mm compression 6.8 kvs 1.2 bar (A) 0.8 bar (B)
Switch Rating 5(2)A 230Vac
Max Ambient Temp 50˚C
Max Fluid Temp 88˚C

Ā

B322PF - 3 Port 22mm Mid Positio

Download

B32_PF Datasheet

Ā

1 xĀ 2 Zone RF Programmer

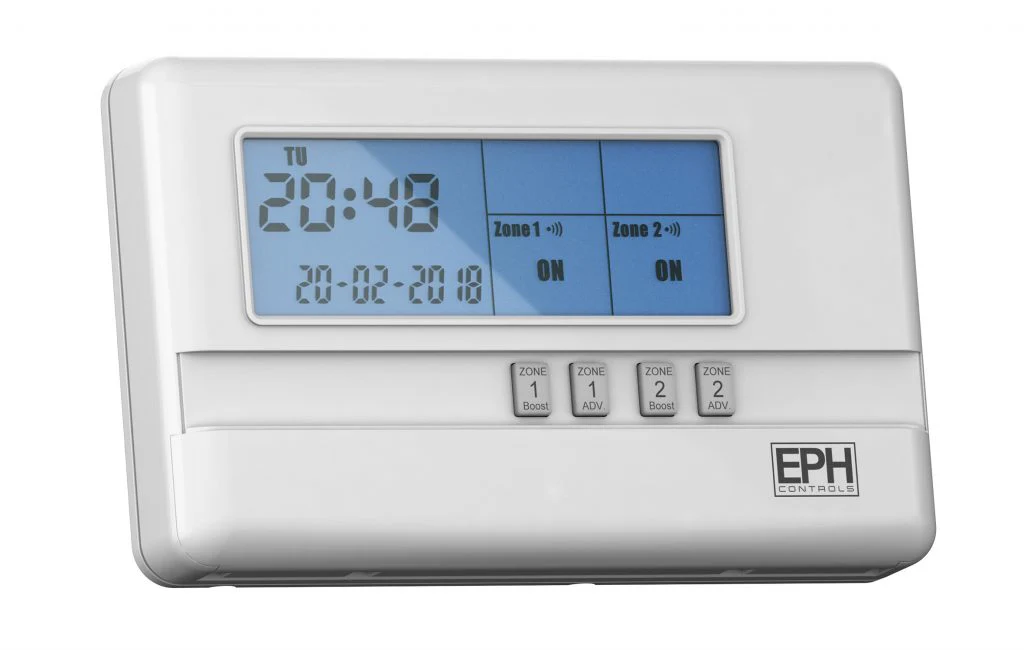

R27-RF - 2 Zone RF Programmer

2 zone RF programmer suitable for use with an 2 no. RF thermostats. This programmer is compatible with the EMBER App when fitted with an EPH WiFi gateway.

Technical Data

PRODUCT CODE NUMBER OF CHANNELS SWITCH OUTPUT BACKPLATE TYPE
R27-RF 2 230Vac SPDT 6 pin
Switch Rating 5(3)A 230Vac
Max Ambient Temp Range 0-50˚C

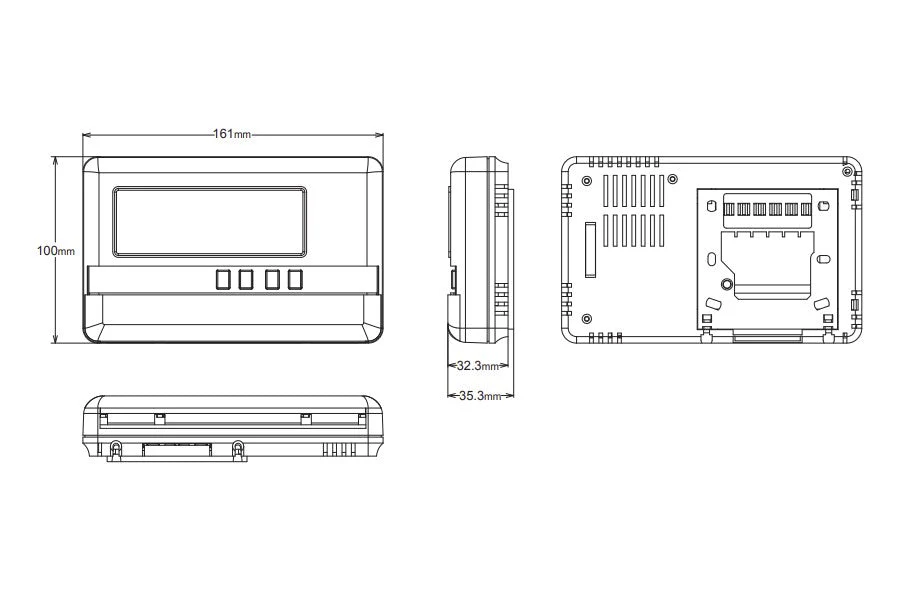

Screen Dimensions 100 x 35mm
Operating Periods 3 per day

Ā

Download

Ā

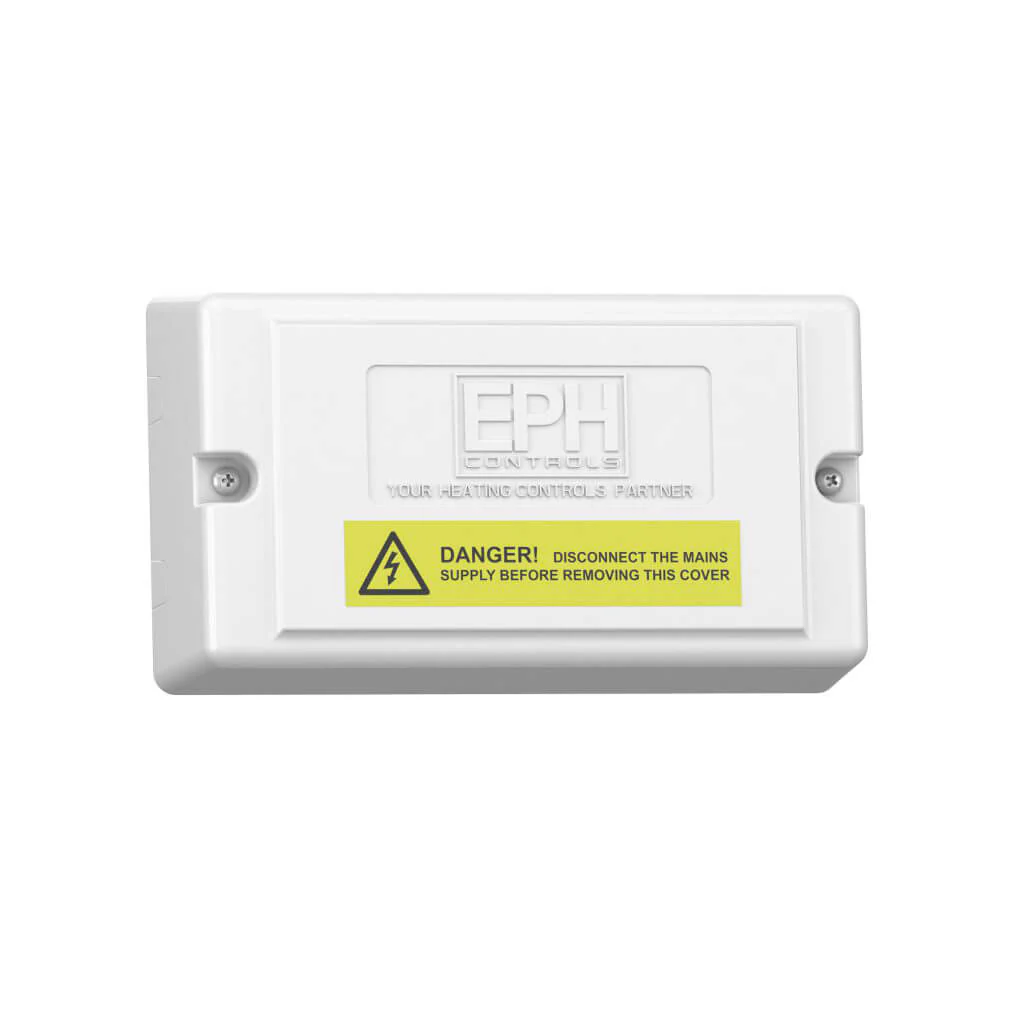

WC2 - Ā 12 Way Wiring Centre – Block Connector Strip

Wiring centres for use in central heating systems.

WC2 - Wiring Centre, 12 Way

$127.51

Original: $425.02

-70%
RF Pack c/w R27-RF, B328PF, RFR, RFC & WC2 Y Plan RF Heating Control Packs—

$425.02

$127.51

Product Information

Shipping & Returns

Description

Direct from EPH - Delivery Lead time 4-5 Working days :Ā  Live ChatĀ /Ā 01985 850982

Ā

1 xĀ B328PF - 3 Port 28mm Mid Position / Diverter Valve

3 port compression motorised valves with detachable actuator and detachable cable. These motorised valves are the perfect solution for zoning your hot water or central heating circuits.

Technical Data

PRODUCT CODE CONNECTION TYPE FLOW RATE MAX. CLOSE OFF PRESSURE*
B328PF 28mm compression 6.8 kvs 1.2 bar (A) 0.8 bar (B)
Switch Rating 5(2)A 230Vac
Max Ambient Temp 50˚C
Max Fluid Temp 88˚C

Ā

B322PF - 3 Port 22mm Mid Positio

Download

B32_PF Datasheet

Ā

1 xĀ 2 Zone RF Programmer

R27-RF - 2 Zone RF Programmer

2 zone RF programmer suitable for use with an 2 no. RF thermostats. This programmer is compatible with the EMBER App when fitted with an EPH WiFi gateway.

Technical Data

PRODUCT CODE NUMBER OF CHANNELS SWITCH OUTPUT BACKPLATE TYPE
R27-RF 2 230Vac SPDT 6 pin
Switch Rating 5(3)A 230Vac
Max Ambient Temp Range 0-50˚C
Screen Dimensions 100 x 35mm
Operating Periods 3 per day

Ā

Download

Ā

WC2 - Ā 12 Way Wiring Centre – Block Connector Strip

Wiring centres for use in central heating systems.

WC2 - Wiring Centre, 12 Way
