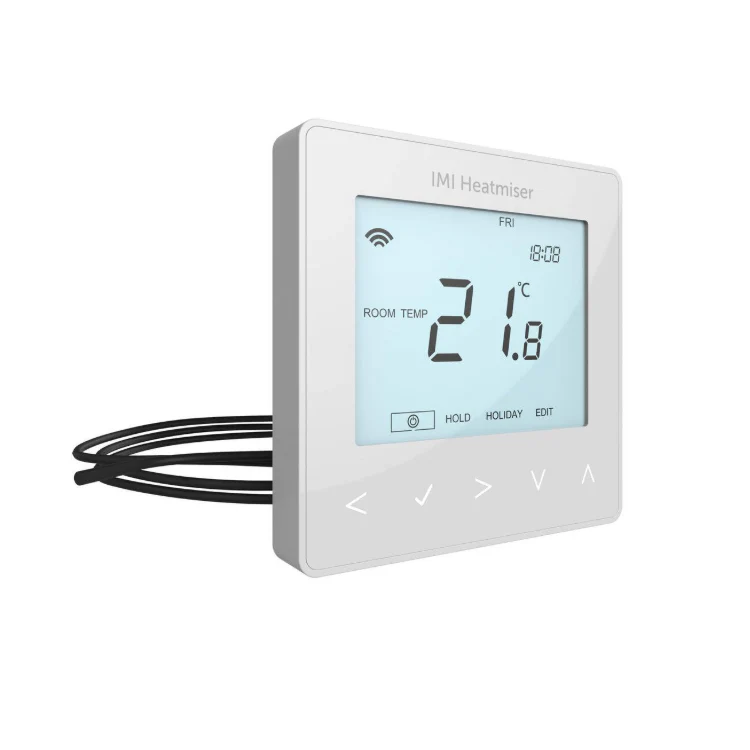

Heatmiser neoStat-e Electric Thermostat (White) V3

IMI Heatmiser neoStat-e V3 – Smart control for electric underfloor heating

neoStat-e V3 is our latest smart thermostat designed specifically for electric underfloor heating systems. With a clean, slimline aesthetic, backlit display and illuminated touch keys, it delivers intuitive control for modern homes.

It can be configured either as a full programmable thermostat or as a timer, giving you the flexibility to manage electric heating as well as auxiliary applications such as towel rails or lighting.

Supplied with a 3-metre remote floor sensor, neoStat-e V3 supports multiple sensing modes (Air, Air & Floor, Floor Only) and is capable of switching loads up to 16A—making it ideal for direct electric underfloor heating control.

When connected to the neoHub (sold separately), neoStat-e V3 integrates seamlessly into the wider neo smart control system, enabling app control via the neoApp and compatibility with leading home automation platforms. The upgraded hardware platform improves wireless Mesh coverage for stronger, more reliable communication.

Wireless Air Sensor & Door Contact Functions

For enhanced comfort and energy efficiency, pair neoStat-e V3 with a wireless air sensor to measure temperature remotely or to calculate an average reading in larger rooms. Heating can also be automatically paused when a window or door is opened using an optional contact sensor.

Key Features :

• Contemporary, slimline design
• Backlit display with proximity activation
• Illuminated soft-touch keys
• User-selectable operating modes: Non-Programmable, Weekday/Weekend, All Days Different, All Days Same
• Air, Air & Floor, and Floor Only sensing options
• 3m remote floor sensor included
• Compatible with 10K, 12K and 15K NTC floor probes
• Switching capacity up to 16A
• 5-minute programming intervals
• 0.5°C temperature set increments
• Self-learning Optimum Start
• 4 comfort levels per day (expandable to 6 with neoHub)
• Temperature Hold and Holiday modes
• Automatic white backlight (turns off after 30 seconds)
• Flush-mount installation
• °C/°F selectable
• Key code lock
• Frost protection
• neoHub required

Please note Full app control only when paired with the neoHub & the neoStat V3 is not compatible with the neoHub G1.

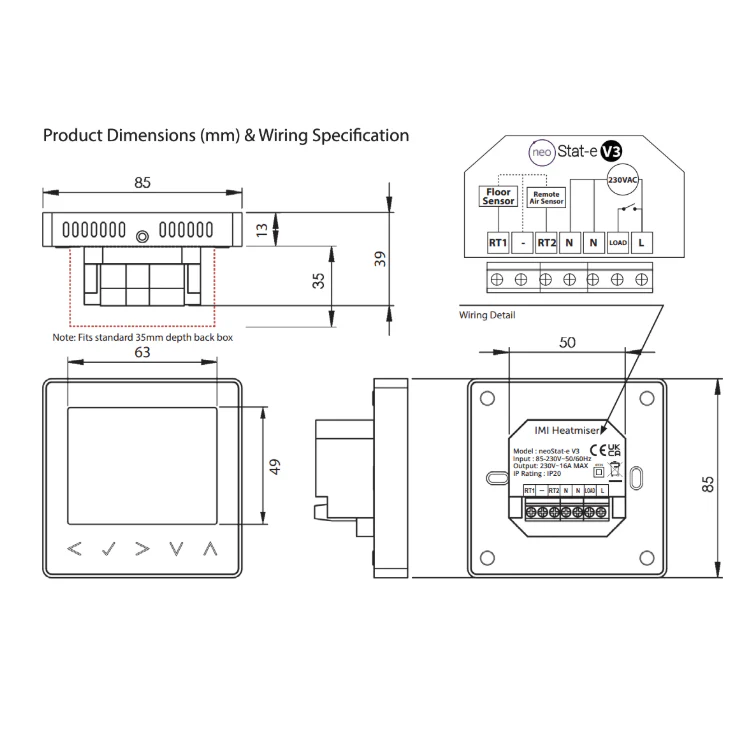

Technical Specifications :

Brand	Heatmiser
Colour	White
Control	Electric Underfloor Heating
Depth	15 mm
Dimensions	85 x 85 x 15 mm
Features	Digital Control
Height	85 mm
Height Group	0-500 mm
IP Rating	IP20
Maximum Switching Current	16A / 3680W
Power Supply	230V
Product Type	Thermostat
Sensing Unit	10 kΩ NTC
Smart Hub Supplied	No
Temperature Range	5°C to 35°C
Warranty	2 years
Wi-Fi Compatible	Yes - with Gateway/Hub
Width	85 mm
Width Group	0-550 mm
