Flamco Pro PDm 2.0 Precomm 1P WallMount 2.0bar
Compact and totally enclosed digital pressurisation units with electronic pressure transducer and user-friendly microprocessor for use on sealed system in order to provide a minimum system pressure requirement.

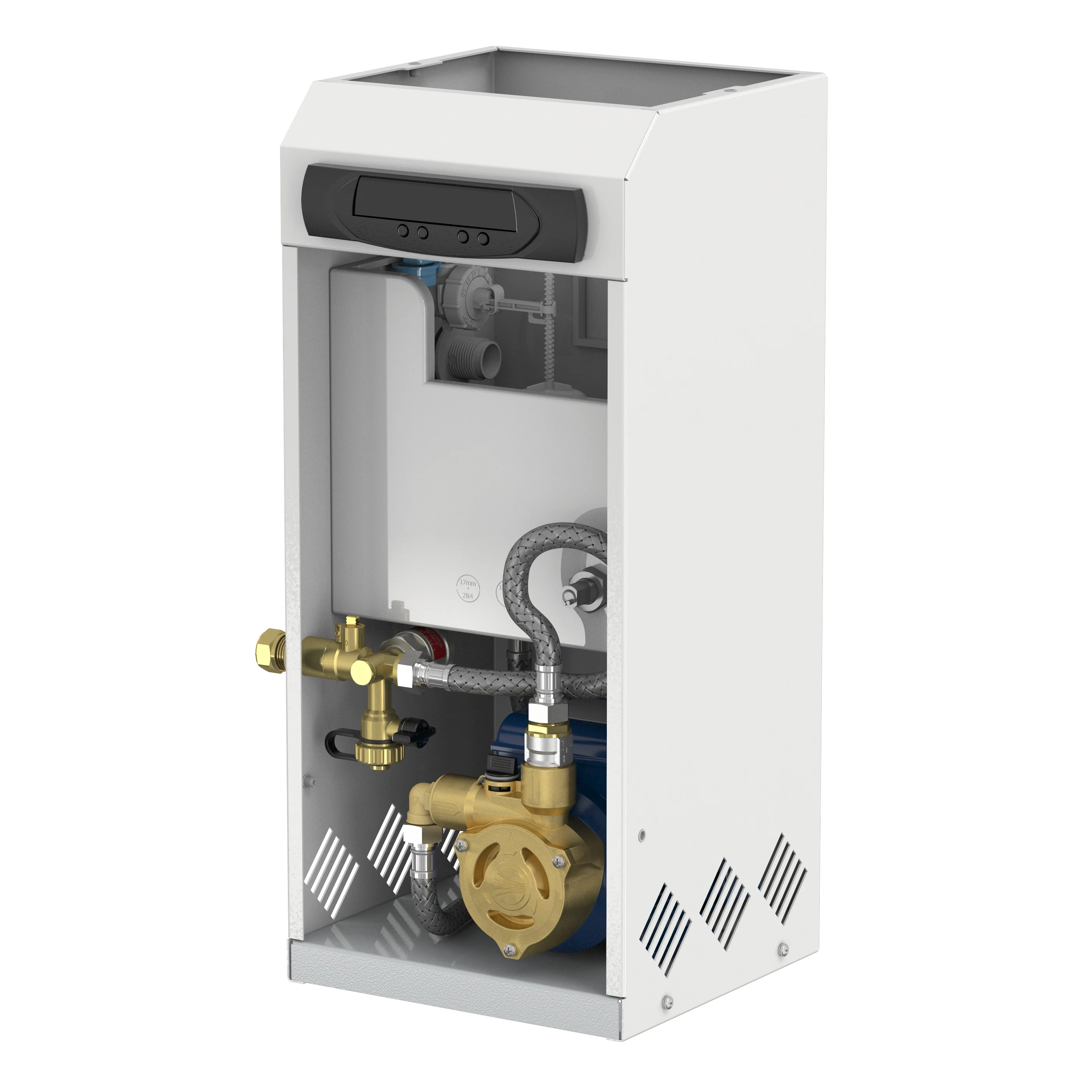

The Pro PDm is a wall mounted, flow rate (up to 12 l/min) top-up pressurisation unit with 4 litre internal break tank. Ideal for Industrial, commercial or large domestic applications. Available preset to 1.0 bar, 1.5 bar, 2.0 bar or 2.5 bar topup (Delivery) pressure).
Application:
Commercial, Industrial and Residential.
System Volume (Guide): < 50,000 litres.
Product Features
- For system volumes up to 50,000 litres.
- Dry Run Protection.
- Anti-Seize Routine (Pump is pulsed for 2 seconds if inactive for 60 days, must be enabled at time of commissioning).
- Pressure setting in 0.1 bar increments.
- Self venting pumps and preset options to remove the need for conventional commissioning of the Pressurisation Unit.
- Preset to facilitate a plug and play installation.
- Electric pump, 230V 50Hz 1ph.
- Colour: Grey (RAL 7016).
- System fill mode.
- Onscreen Service Reminder - 12 Months.
- MODBUS RTU Communication Protocol.
- Password protected.
- Bi-directional programming menu.
- Flood Protection (Pump Runtime Limiter, Excessive Start Alarm).
- Pump pulse option.
- Event logging: Alarm activations, Pump Run counter (activations per pump), Cumulative run timer (hours per pump), Electrical interuption.
- Volt free contacts: Common Alarm (N/C), High Pressure Alarm (N/O), Low Pressure Alarm (N/O), Sensor Health (N/O), Pump 1 Health (N/O), Pump 2 Health (N/O).
- Optional Additional Volt Free Contacts (Requires an additional factory fitted expansion board): Low Pressure Warning (N/O), High Pressure Warning (N/O), Low Water In Break Tank (N/O), Low Additive In Holding Tank (N/O), Pump 1 Run For Topup (N/O), Pump 2 Run For Topup (N/O).
Read More - Pro PDm - Topping Up | Flamco (aalberts-hfc.com)
Original: $1,867.56
-70%$1,867.56
$560.27Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Compact and totally enclosed digital pressurisation units with electronic pressure transducer and user-friendly microprocessor for use on sealed system in order to provide a minimum system pressure requirement.
The Pro PDm is a wall mounted, flow rate (up to 12 l/min) top-up pressurisation unit with 4 litre internal break tank. Ideal for Industrial, commercial or large domestic applications. Available preset to 1.0 bar, 1.5 bar, 2.0 bar or 2.5 bar topup (Delivery) pressure).
Application:
Commercial, Industrial and Residential.
System Volume (Guide): < 50,000 litres.
Product Features
- For system volumes up to 50,000 litres.
- Dry Run Protection.
- Anti-Seize Routine (Pump is pulsed for 2 seconds if inactive for 60 days, must be enabled at time of commissioning).
- Pressure setting in 0.1 bar increments.
- Self venting pumps and preset options to remove the need for conventional commissioning of the Pressurisation Unit.
- Preset to facilitate a plug and play installation.
- Electric pump, 230V 50Hz 1ph.
- Colour: Grey (RAL 7016).
- System fill mode.
- Onscreen Service Reminder - 12 Months.
- MODBUS RTU Communication Protocol.
- Password protected.
- Bi-directional programming menu.
- Flood Protection (Pump Runtime Limiter, Excessive Start Alarm).
- Pump pulse option.
- Event logging: Alarm activations, Pump Run counter (activations per pump), Cumulative run timer (hours per pump), Electrical interuption.
- Volt free contacts: Common Alarm (N/C), High Pressure Alarm (N/O), Low Pressure Alarm (N/O), Sensor Health (N/O), Pump 1 Health (N/O), Pump 2 Health (N/O).
- Optional Additional Volt Free Contacts (Requires an additional factory fitted expansion board): Low Pressure Warning (N/O), High Pressure Warning (N/O), Low Water In Break Tank (N/O), Low Additive In Holding Tank (N/O), Pump 1 Run For Topup (N/O), Pump 2 Run For Topup (N/O).
Read More - Pro PDm - Topping Up | Flamco (aalberts-hfc.com)
