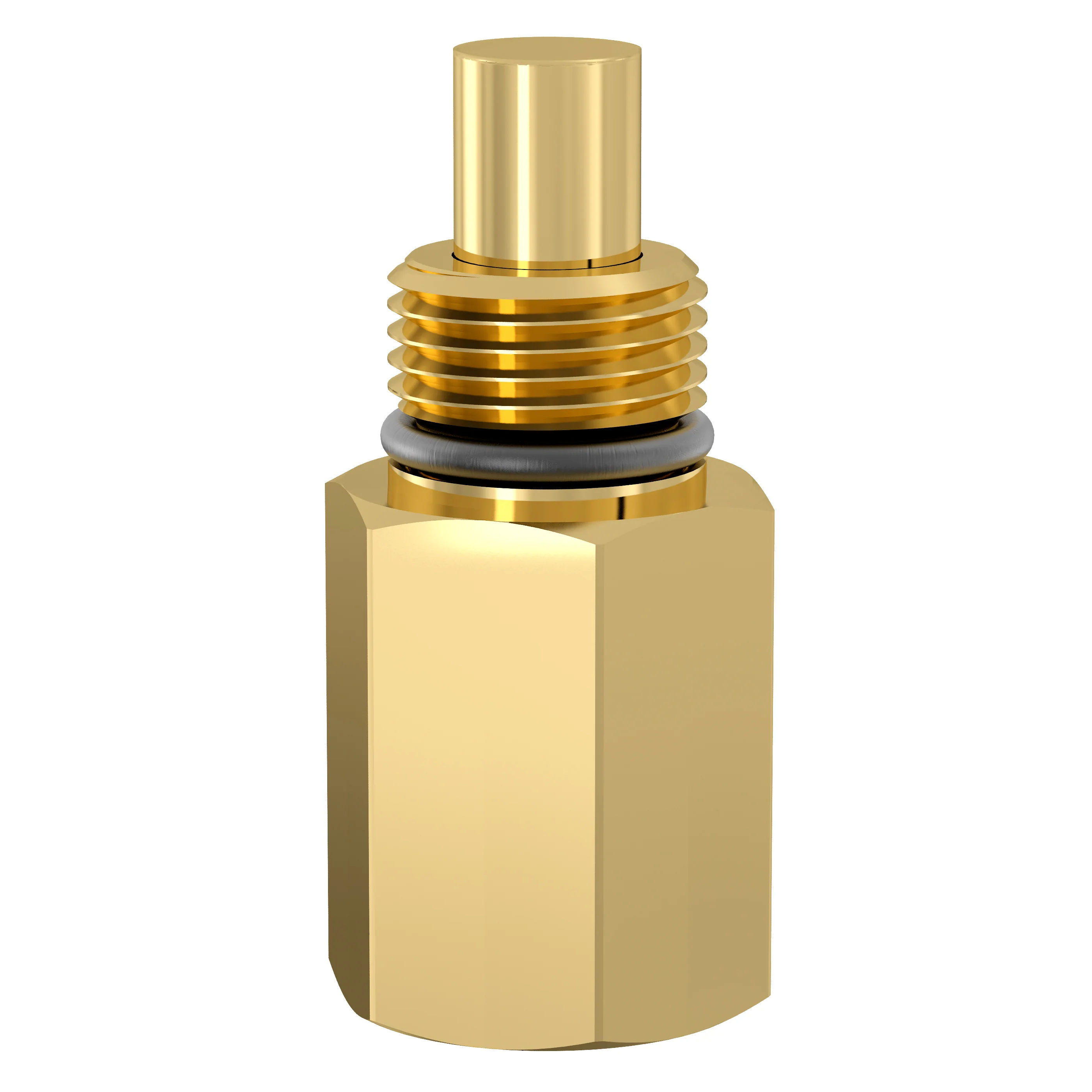

Flamco Flexvent Super shutoff valve G½"F x G½"M Automatic Floating Air Vent AAV

The compact, proven design has high efficiency and guaranteed operation for heating and air conditioning.

• The water within the installation contains air which can form corrosion and reduce the thermal transfer. A Flexvent is fitted at places where the air collects.

• The cap of the Flexvent Max is conical in shape. The advantage of this construction is that the clearance between the water level and venting valve is maximized.
• The air escape duct can be opened or closed with an adjusting screw.
• The venting valve forms an integral part of the cap, so that it is impossible to damage the float vent mechanism from outside.

Technical Specifications

• Minimum/Maximum working temperature: -10 °C / 120 °C.
• Minimum/Maximum working pressure: 0.2 / 25.0 bar.
• Suitable for addition of glycol-based anti-freeze up to 50%.
• Suitable for addition of ethanol-based anti-freeze up to 30%.
