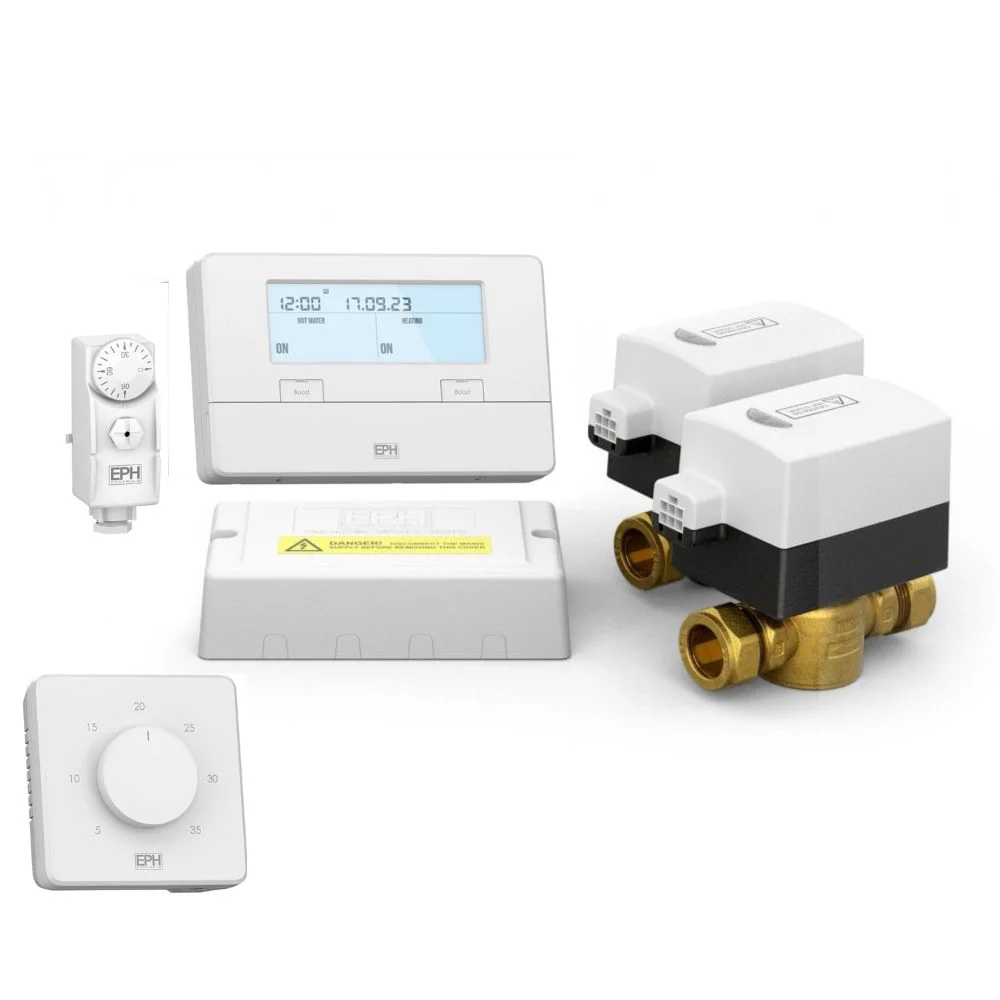

CR2P-221311 - Pack c/w R27-HW, 2 x V222P, CM3, WRP & WC2 - 2 Zone Heating Control Packs
Direct from EPH - Delivery Lead time 4-5 Working days : Live Chat / 01985 850982
EPH Controls’ range of hardwired programmers offers a comprehensive solution for all zoning requirements with models available from 1 to 4 channels. With market-leading functionality such as auto summer winter time, boost, advance and service interval these programmers, offer simple design functionality and are ideally suited to householders.
Includes
- 1 x R27 – 2 Zone Programmer V2
- 2 x V222P 22mm compression 4.6 kvs 1.0 bar
- 1 x CM3 - THERMOSTATS
- 1 x WRP - Pipe / Cylinder Thermostat
- 1 x WC2 - 12 Way Wiring Centre – Block Connector Strip

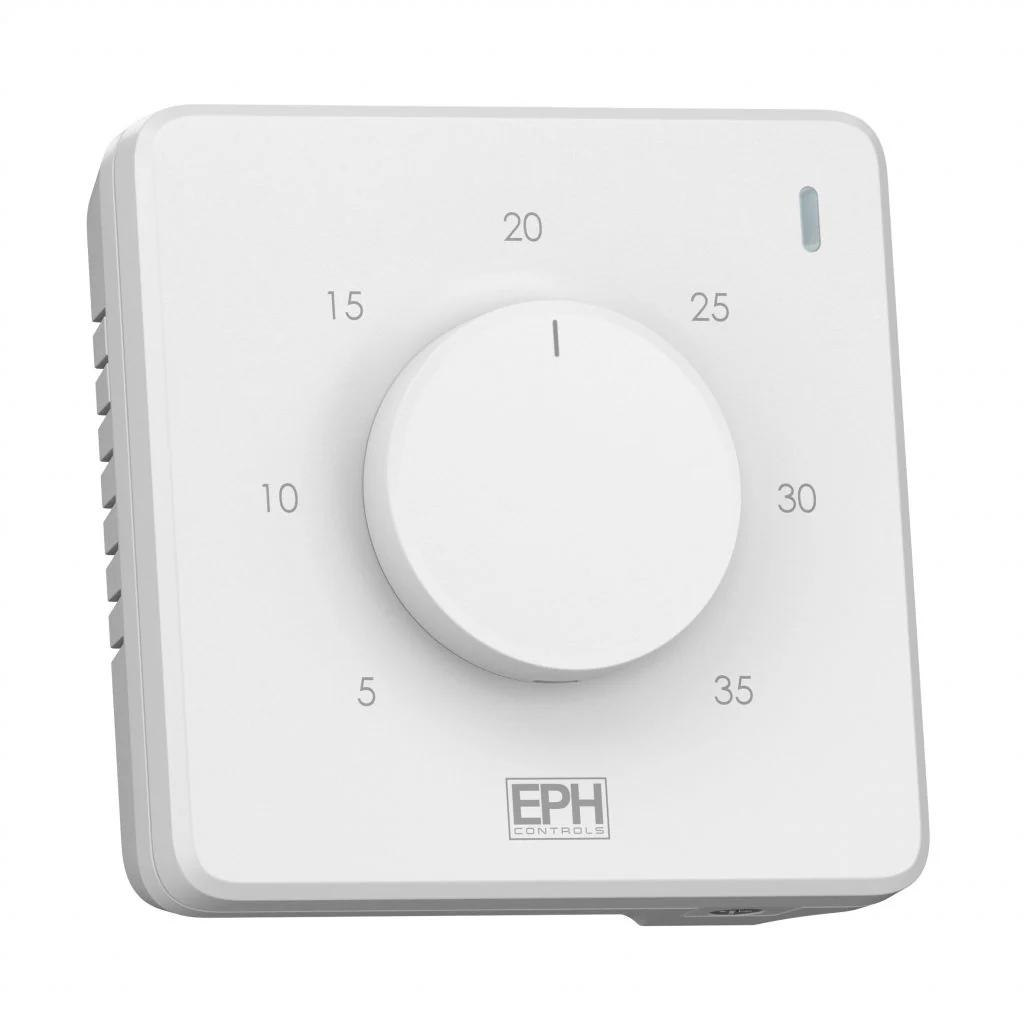

CM3 - Heating-Cooling Room Thermostat with Light
The room temperature is measured using an internal gas-filled sensor and then compared with the set point. When the set point is above the room temperature, there is a call for heat and the thermostat switches out on terminal 2. When the set point is below the room temperature, there is no call for heat and the thermostat switches out on terminal 1.
- Product Code - CM3
- Temperature Range - 5 ... 35˚C
- Contact - SPDT
- Lockable Range - Yes
- Heat Anticipator - Yes

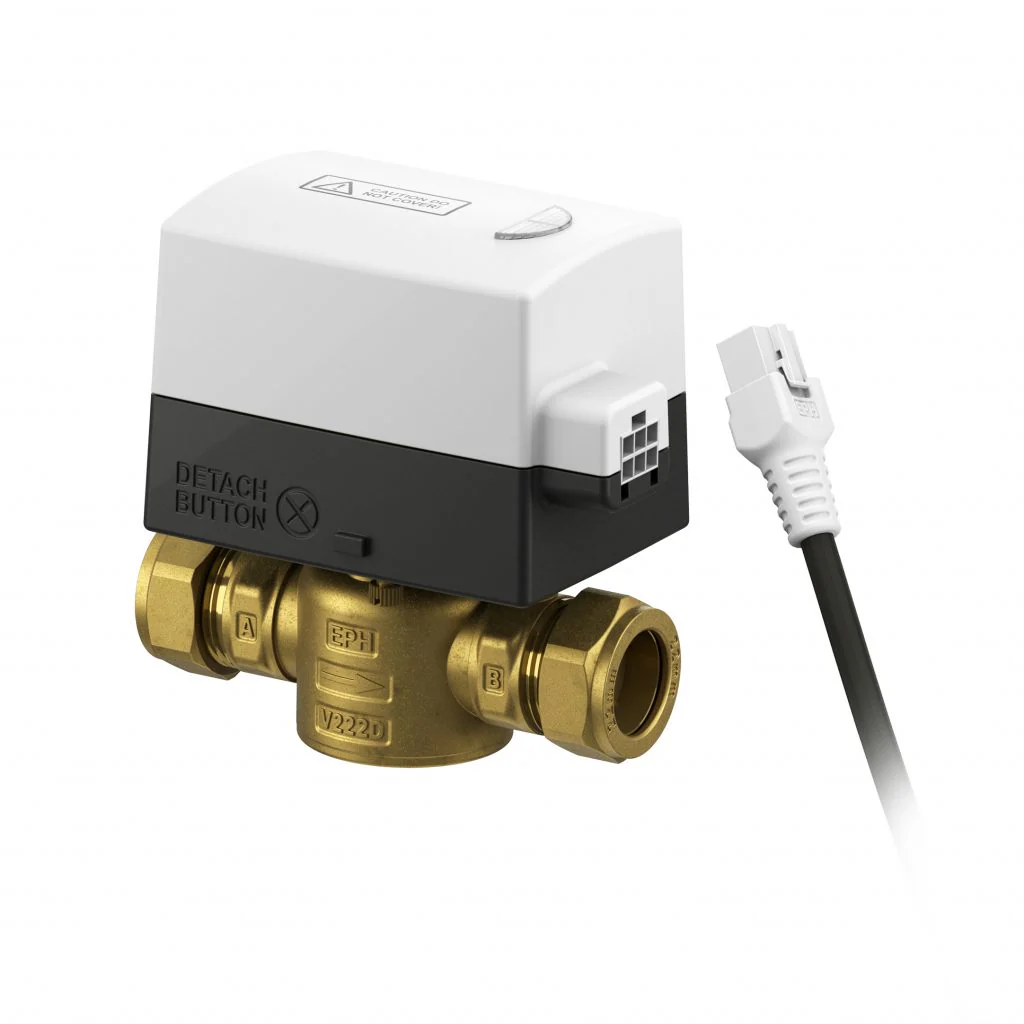

2 x V222P - 2 Port Valve – Compression
2 port compression motorised valves with detachable actuator, detachable cable and power on light. These motorised valves are the perfect solution for zoning your hot water or central heating circuits.

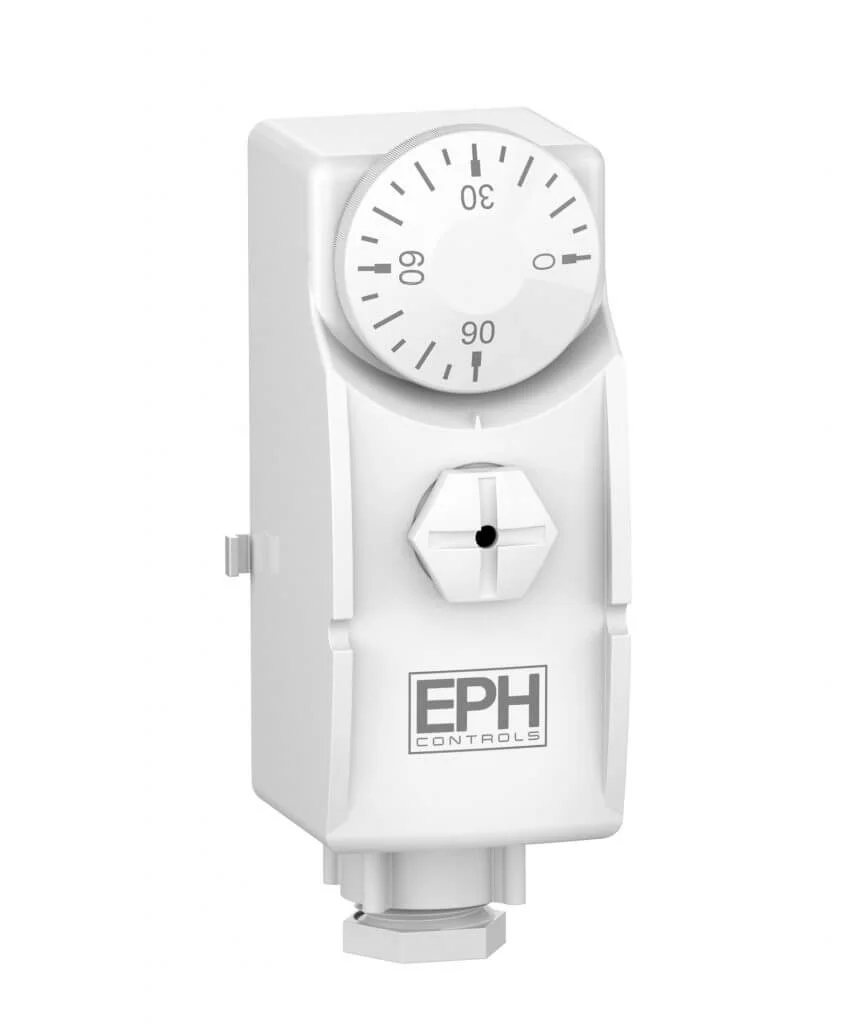

1 x Pipe / Cylinder Thermostat
Pipe / Cylinder thermostat suitable for controlling hot water cylinders or central heating pumps. Available in both standard and tamperproof versions.
Technical Data

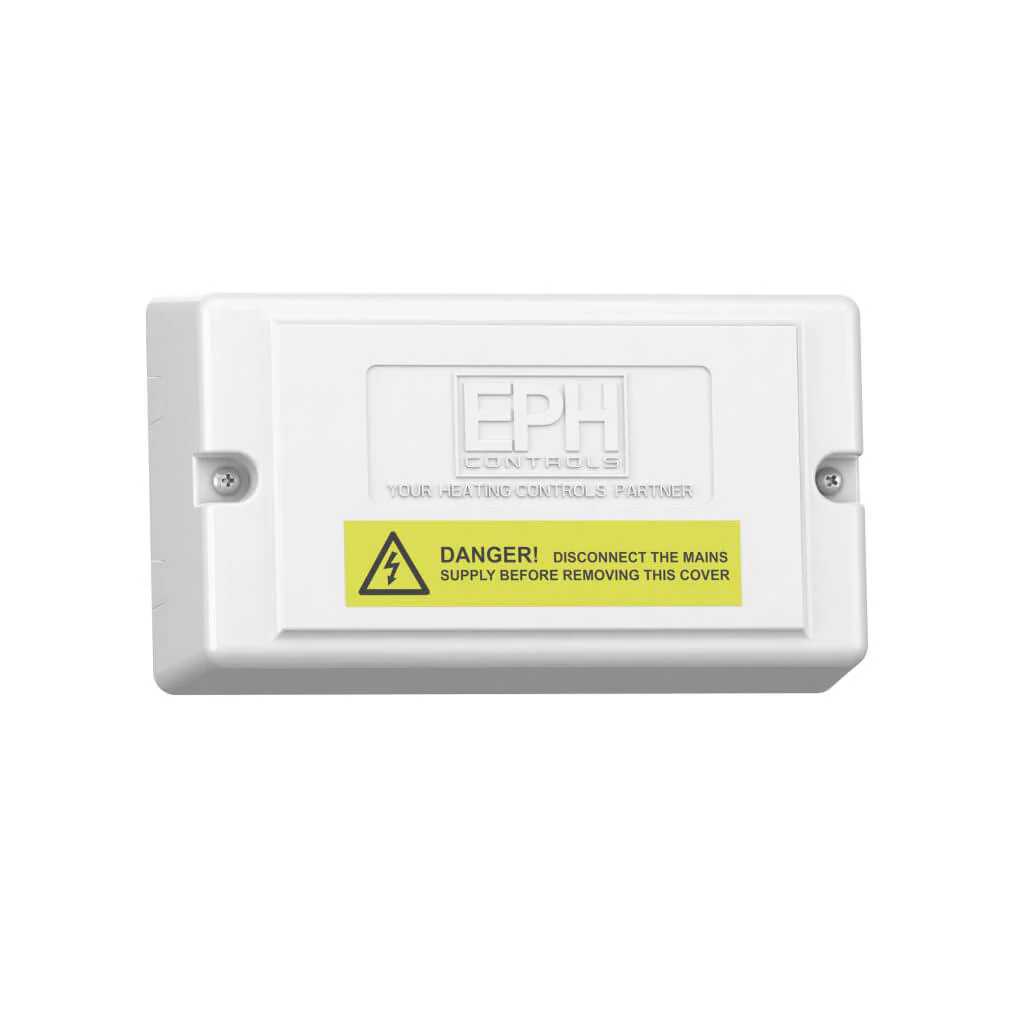

WC2 - 12 Way Wiring Centre – Block Connector Strip
Wiring centres for use in central heating systems.
V222P - 2 Port 22mm Motorised Valve 4.6 kvs 1.0 bar
The V222P range of motorised valves is specifically designed for use in domestic applications only.
They are not designed for use in commercial or industrial applications such as schools, nursing homes or hotels where large commercial pump sets are fitted.
Warranty will be void If a valve is fitted in any application other than domestic. Please note we have a full range of commercial and industrial valves to suit every application.
- V222P
- CONNECTION TYPE - 22mm compression
- FLOW RATE 4.6 kvs
- MAX. CLOSE OFF PRESSURE - 1.0 bar
| Switch Rating | 11(3)A 230Vac |
| Max Ambient Temp | 50˚C |
| Max Fluid Temp | 88˚C |
Download

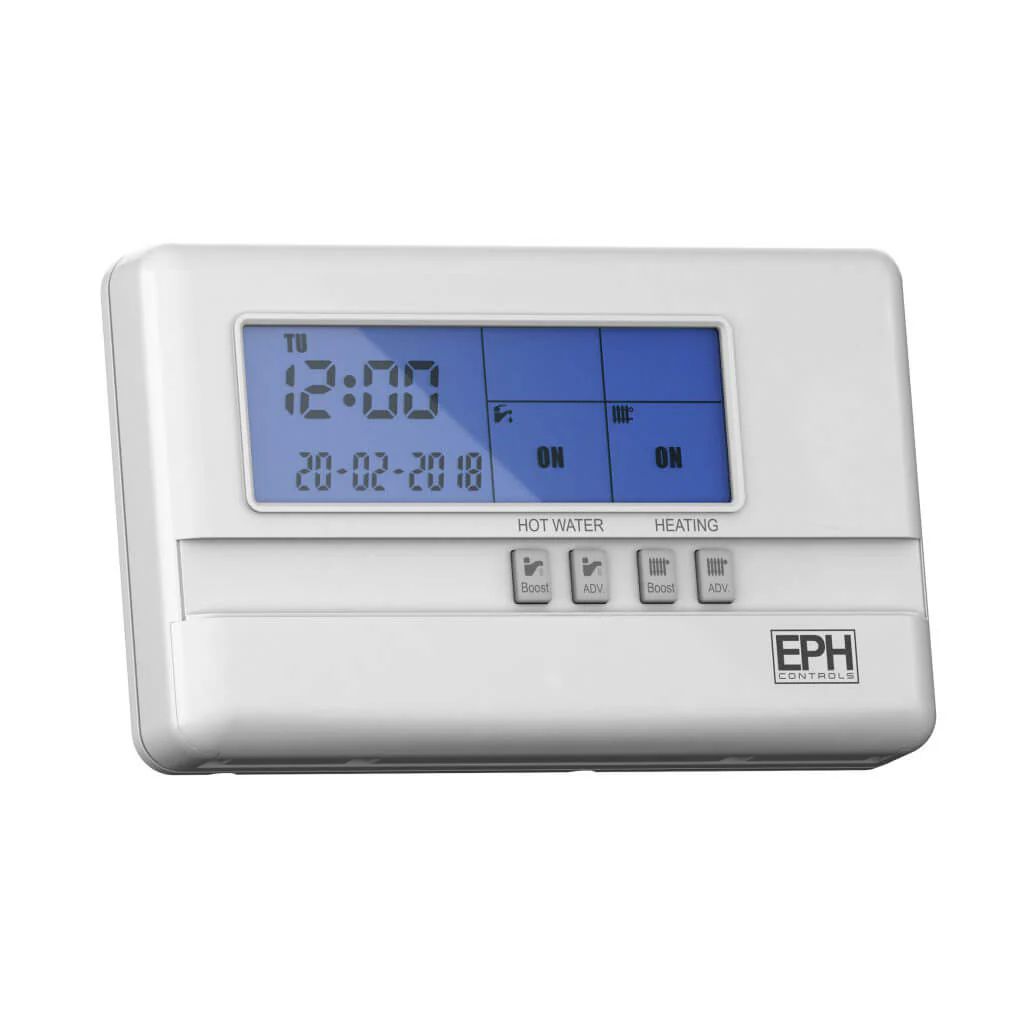

R27-HW – 2 Zone Programmer [Pre 2023]
2 zone programmer with 3 operating modes – 24h, 5/2d & 7 day. Perfect for controlling 2 zones in a central heating system.
- PRODUCT CODE - R27-HW
- SWITCH OUTPUT - 230Vac
- PRODUCT WARRANTY - 5 Year
- SCREEN DIMENSIONS - 100 x 35mm
| Switch Rating | 3(1)A 230Vac |
| Ambient Temp Range | 0...50˚C |
| Operating Periods | 3 per day |
| Backplate Type | 6 pin |
![R27 - 2 Zone Programmer Programmers [Pre 2023]](https://cdn.shopify.com/s/files/1/0610/4108/2554/files/R27-2ZoneProgrammerProgrammers_Pre2023_480x480.jpg?v=1690295880)
Download
Original: $237.23
-70%$237.23
$71.17Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Direct from EPH - Delivery Lead time 4-5 Working days : Live Chat / 01985 850982
EPH Controls’ range of hardwired programmers offers a comprehensive solution for all zoning requirements with models available from 1 to 4 channels. With market-leading functionality such as auto summer winter time, boost, advance and service interval these programmers, offer simple design functionality and are ideally suited to householders.
Includes
- 1 x R27 – 2 Zone Programmer V2
- 2 x V222P 22mm compression 4.6 kvs 1.0 bar
- 1 x CM3 - THERMOSTATS
- 1 x WRP - Pipe / Cylinder Thermostat
- 1 x WC2 - 12 Way Wiring Centre – Block Connector Strip
CM3 - Heating-Cooling Room Thermostat with Light
The room temperature is measured using an internal gas-filled sensor and then compared with the set point. When the set point is above the room temperature, there is a call for heat and the thermostat switches out on terminal 2. When the set point is below the room temperature, there is no call for heat and the thermostat switches out on terminal 1.
- Product Code - CM3
- Temperature Range - 5 ... 35˚C
- Contact - SPDT
- Lockable Range - Yes
- Heat Anticipator - Yes
2 x V222P - 2 Port Valve – Compression
2 port compression motorised valves with detachable actuator, detachable cable and power on light. These motorised valves are the perfect solution for zoning your hot water or central heating circuits.
1 x Pipe / Cylinder Thermostat
Pipe / Cylinder thermostat suitable for controlling hot water cylinders or central heating pumps. Available in both standard and tamperproof versions.
Technical Data
WC2 - 12 Way Wiring Centre – Block Connector Strip
Wiring centres for use in central heating systems.
V222P - 2 Port 22mm Motorised Valve 4.6 kvs 1.0 bar
The V222P range of motorised valves is specifically designed for use in domestic applications only.
They are not designed for use in commercial or industrial applications such as schools, nursing homes or hotels where large commercial pump sets are fitted.
Warranty will be void If a valve is fitted in any application other than domestic. Please note we have a full range of commercial and industrial valves to suit every application.
- V222P
- CONNECTION TYPE - 22mm compression
- FLOW RATE 4.6 kvs
- MAX. CLOSE OFF PRESSURE - 1.0 bar
| Switch Rating | 11(3)A 230Vac |
| Max Ambient Temp | 50˚C |
| Max Fluid Temp | 88˚C |
Download
R27-HW – 2 Zone Programmer [Pre 2023]
2 zone programmer with 3 operating modes – 24h, 5/2d & 7 day. Perfect for controlling 2 zones in a central heating system.
- PRODUCT CODE - R27-HW
- SWITCH OUTPUT - 230Vac
- PRODUCT WARRANTY - 5 Year
- SCREEN DIMENSIONS - 100 x 35mm
| Switch Rating | 3(1)A 230Vac |
| Ambient Temp Range | 0...50˚C |
| Operating Periods | 3 per day |
| Backplate Type | 6 pin |
Download
