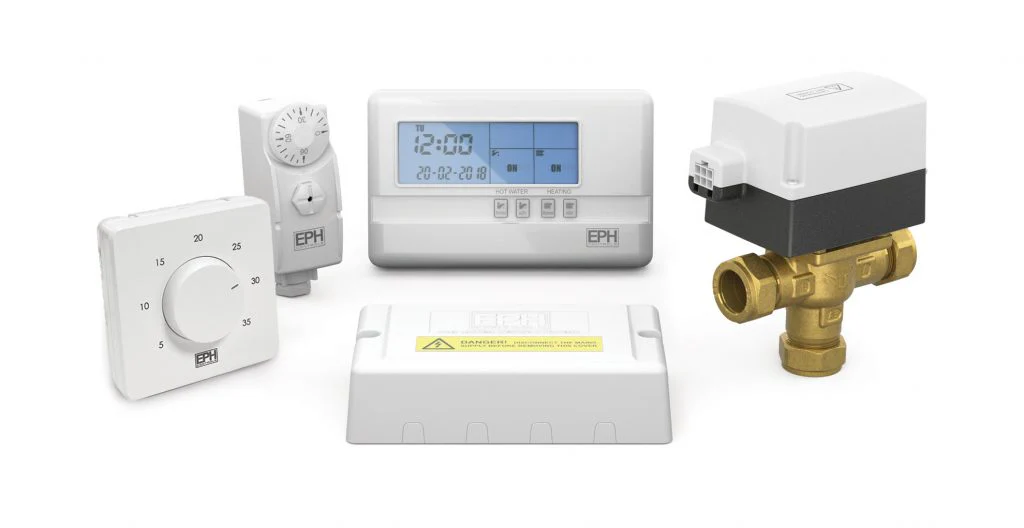

CR28P - Pack c/w R27-HW, B328PF, CM2, WRP & WC2 Y Plan Heating Control Packs

Direct from EPH - Delivery Lead time 4-5 Working days :  Live Chat / 01985 850982



EPH Controls’ range of hardwired programmers offers a comprehensive solution for all zoning requirements with models available from 1 to 4 channels. With market-leading functionality such as auto summer winter time, boost, advance and service interval these programmers, offer simple design functionality and are ideally suited to householders.

Includes

• 1 x R27-HW  - PROGRAMMER
• 1 x B328PF  - 3 Port 28mm Mid Position / Diverter Valve

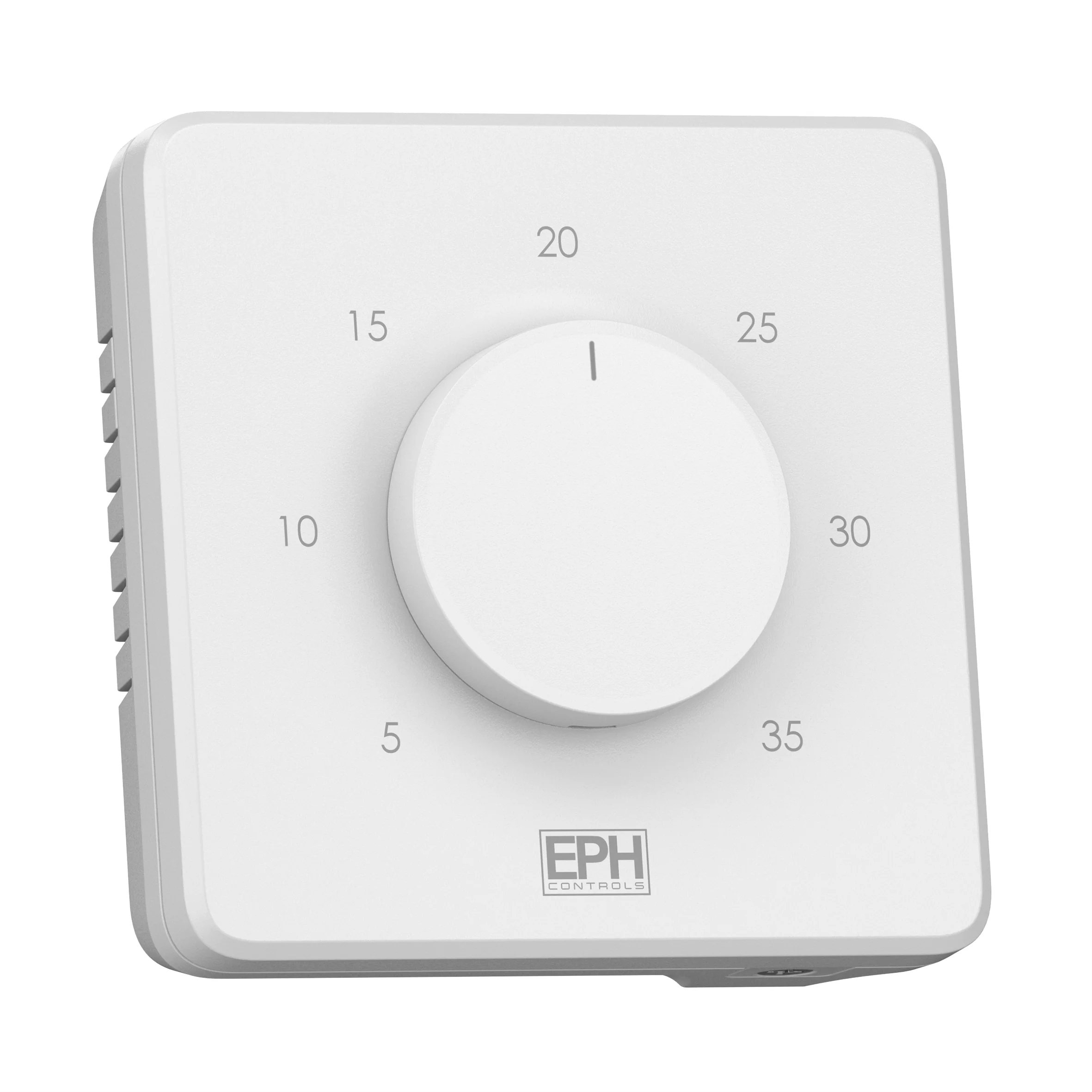

• 1 x CM2 -  THERMOSTATS
• 1 x WRP - Pipe / Cylinder Thermostat
• 1 x WC2 - 12 Way Wiring Centre – Block Connector Strip

Download

• CR2_P Wiring Diagram

1 x B328PF - 3 Port 28mm Mid Position / Diverter Valve

3 port compression motorised valves with detachable actuator and detachable cable. These motorised valves are the perfect solution for zoning your hot water or central heating circuits.

Technical Data

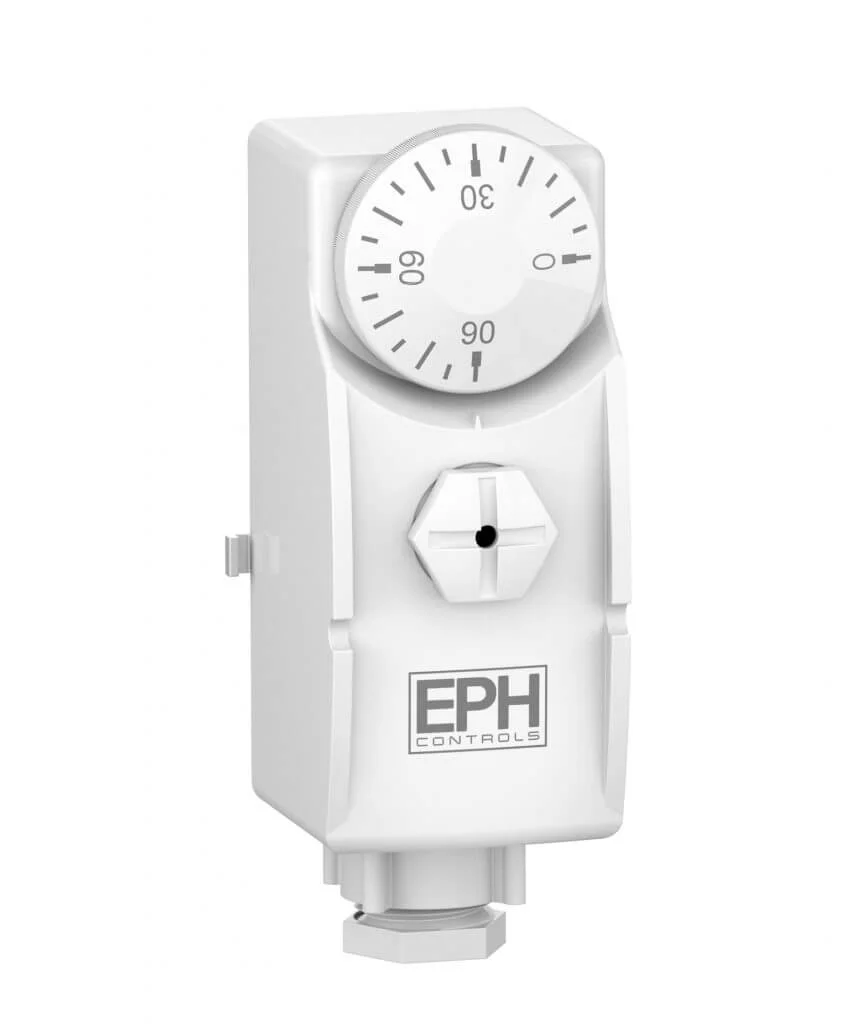

1 x Pipe / Cylinder Thermostat

Pipe / Cylinder thermostat suitable for controlling hot water cylinders or central heating pumps. Available in both standard and tamperproof versions.

Technical Data

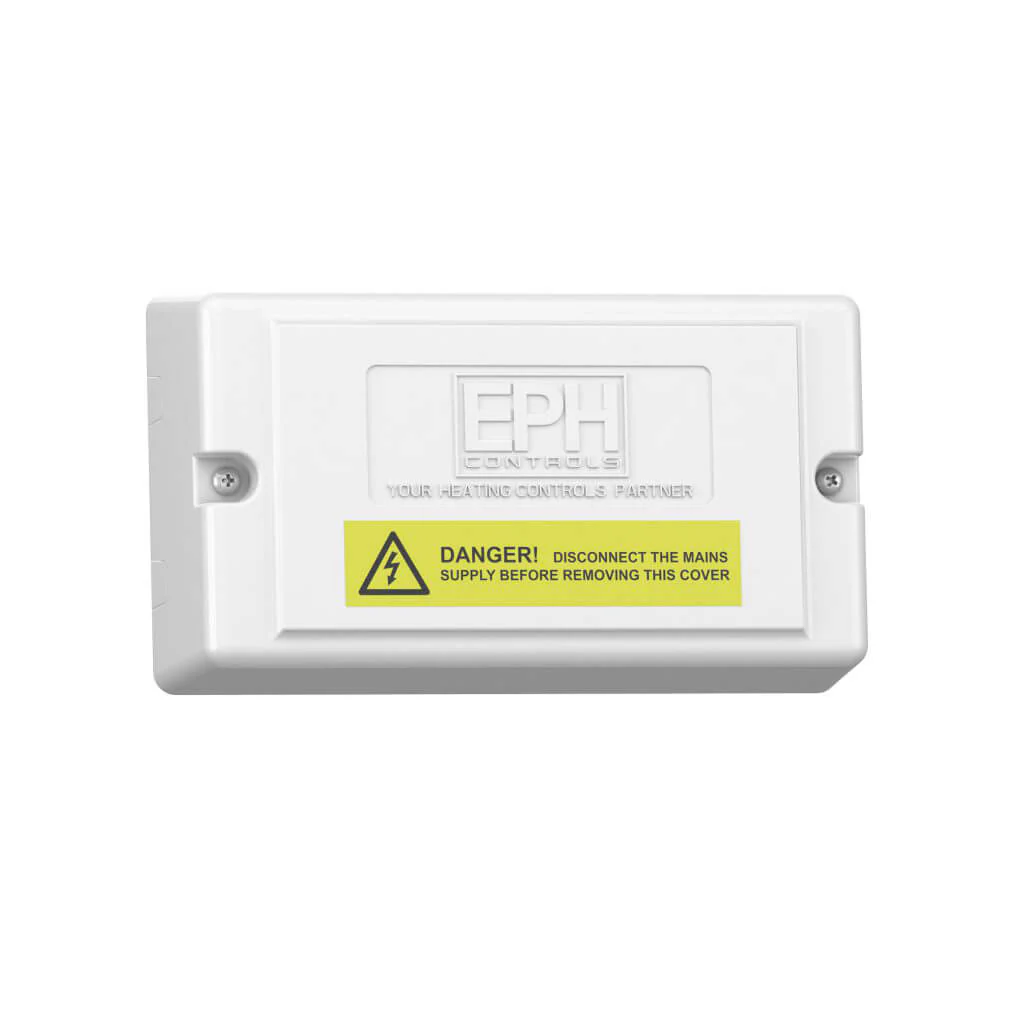

WC2 -  12 Way Wiring Centre – Block Connector Strip

Wiring centres for use in central heating systems.

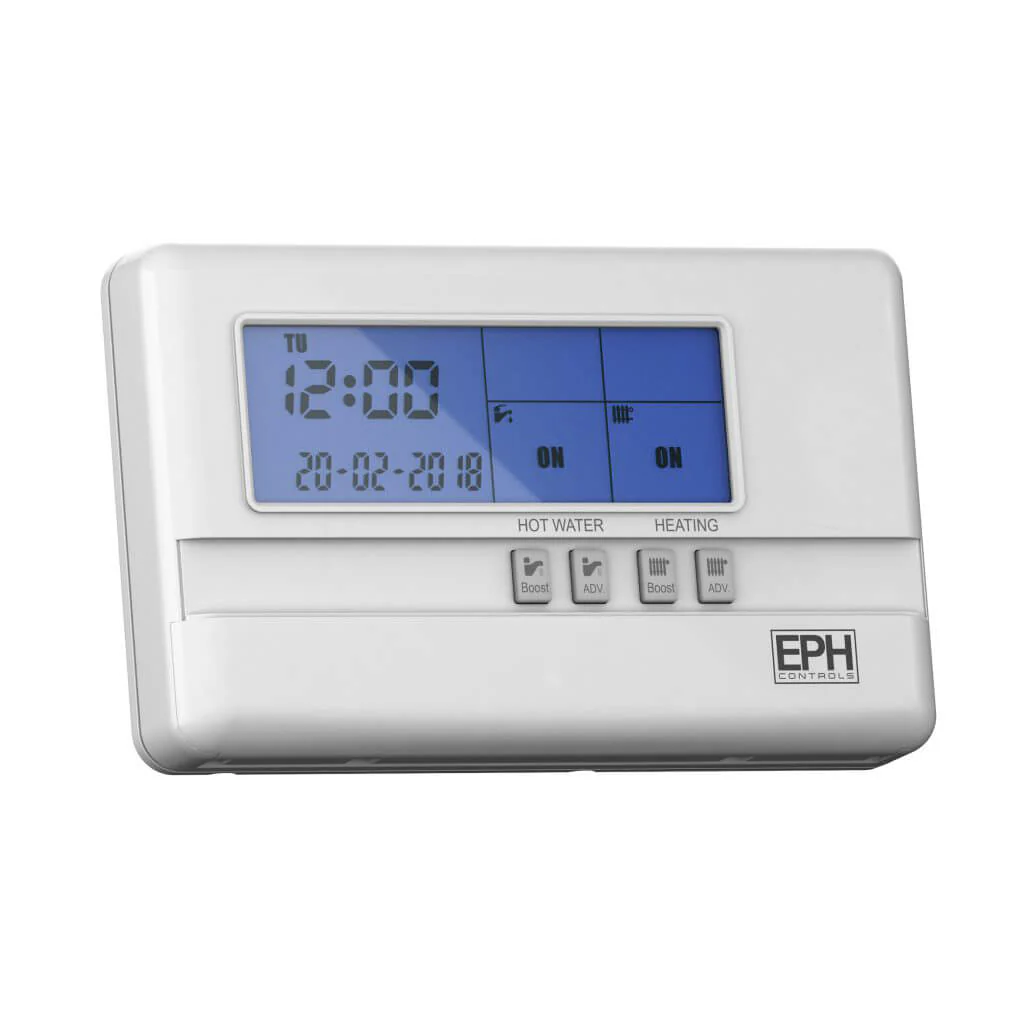

R27-HW – 2 Zone Programmer [Pre 2023]

2 zone programmer with 3 operating modes – 24h, 5/2d & 7 day. Perfect for controlling 2 zones in a central heating system.

• PRODUCT CODE - R27-HW
• SWITCH OUTPUT - 230Vac
• PRODUCT WARRANTY - 5 Year
• SCREEN DIMENSIONS - 100 x 35mm

Switch Rating	3(1)A 230Vac
Ambient Temp Range	0...50˚C
Operating Periods	3 per day
Backplate Type	6 pin

Download

• R27-HW Installation Instructions
• R27-HW Operating Instructions
• R27-HW Simplified Instructions
