CR222PU - Pack c/w R27-HW, V222P, CM2 & WC2 - S Plan Unvented Heating Control Packs

Direct from EPH - Delivery Lead time 4-5 Working days :  Live Chat / 01985 850982



EPH Controls’ range of hardwired programmers offers a comprehensive solution for all zoning requirements with models available from 1 to 4 channels. With market-leading functionality such as auto summer winter time, boost, advance and service interval these programmers, offer simple design functionality and are ideally suited to householders.

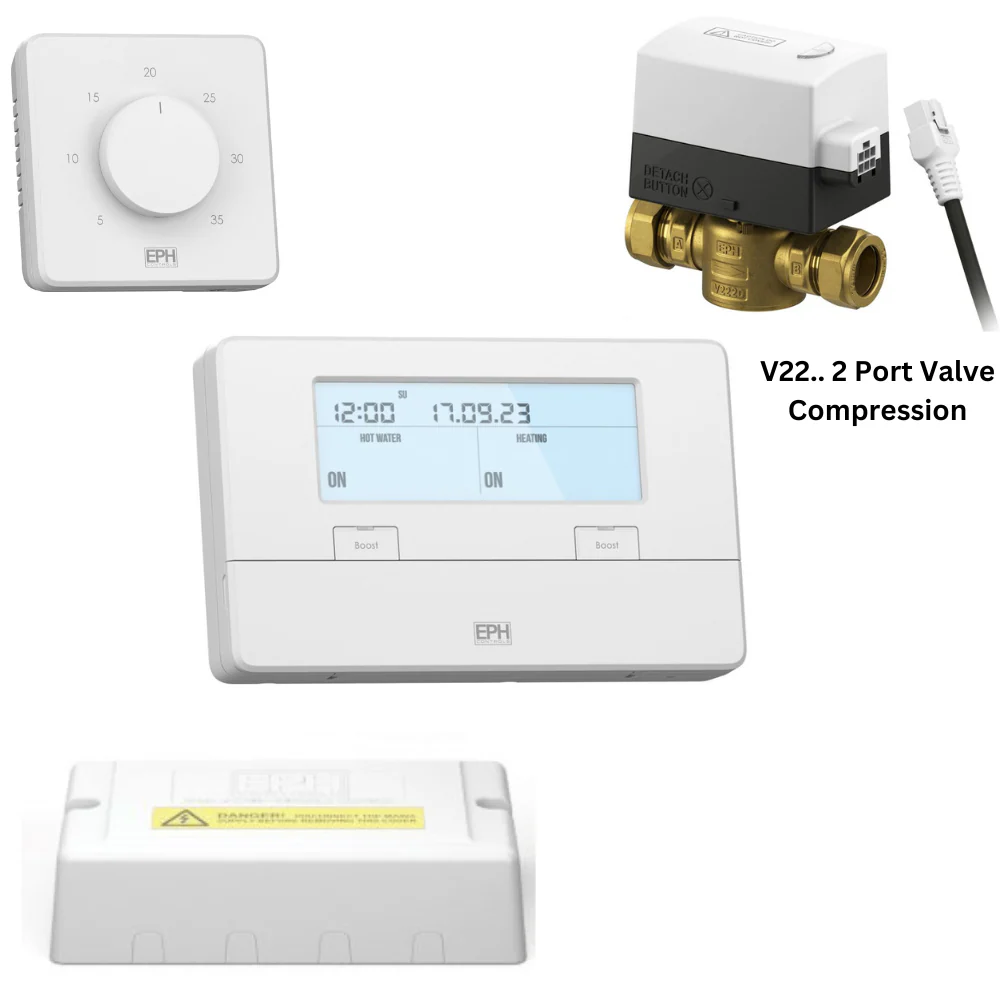

Includes

• 1 x R27 – 2 Zone Programmer V2
• 1 x V222P  - 2 Port Valve – 22mm compression 4.6 kvs 1.0 bar

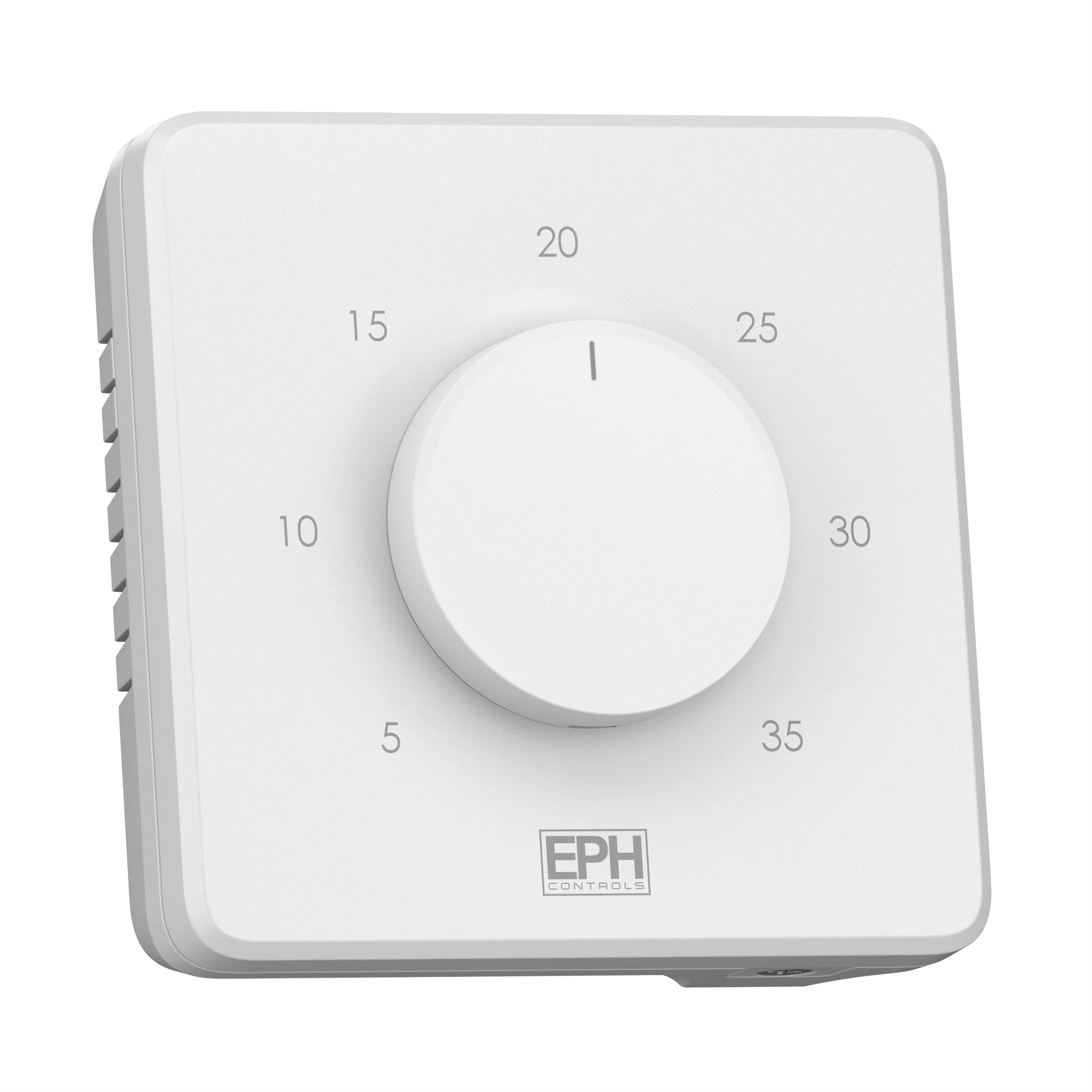

• 1 x CM2 -  THERMOSTATS
• 1 x WC2 - 12 Way Wiring Centre – Block Connector Strip

WC2 -  12 Way Wiring Centre – Block Connector Strip

Wiring centres for use in central heating systems.

V222P - 2 Port 22mm Motorised Valve 4.6 kvs 1.0 bar

The V222P range of motorised valves is specifically designed for use in domestic applications only.

They are not designed for use in commercial or industrial applications such as schools, nursing homes or hotels where large commercial pump sets are fitted.

Warranty will be void If a valve is fitted in any application other than domestic. Please note we have a full range of commercial and industrial valves to suit every application.

• V222P
• CONNECTION TYPE - 22mm compression
• FLOW RATE 4.6 kvs
• MAX. CLOSE OFF PRESSURE - 1.0 bar

Switch Rating	11(3)A 230Vac
Max Ambient Temp	50˚C
Max Fluid Temp	88˚C

Download

• V222P Datasheet

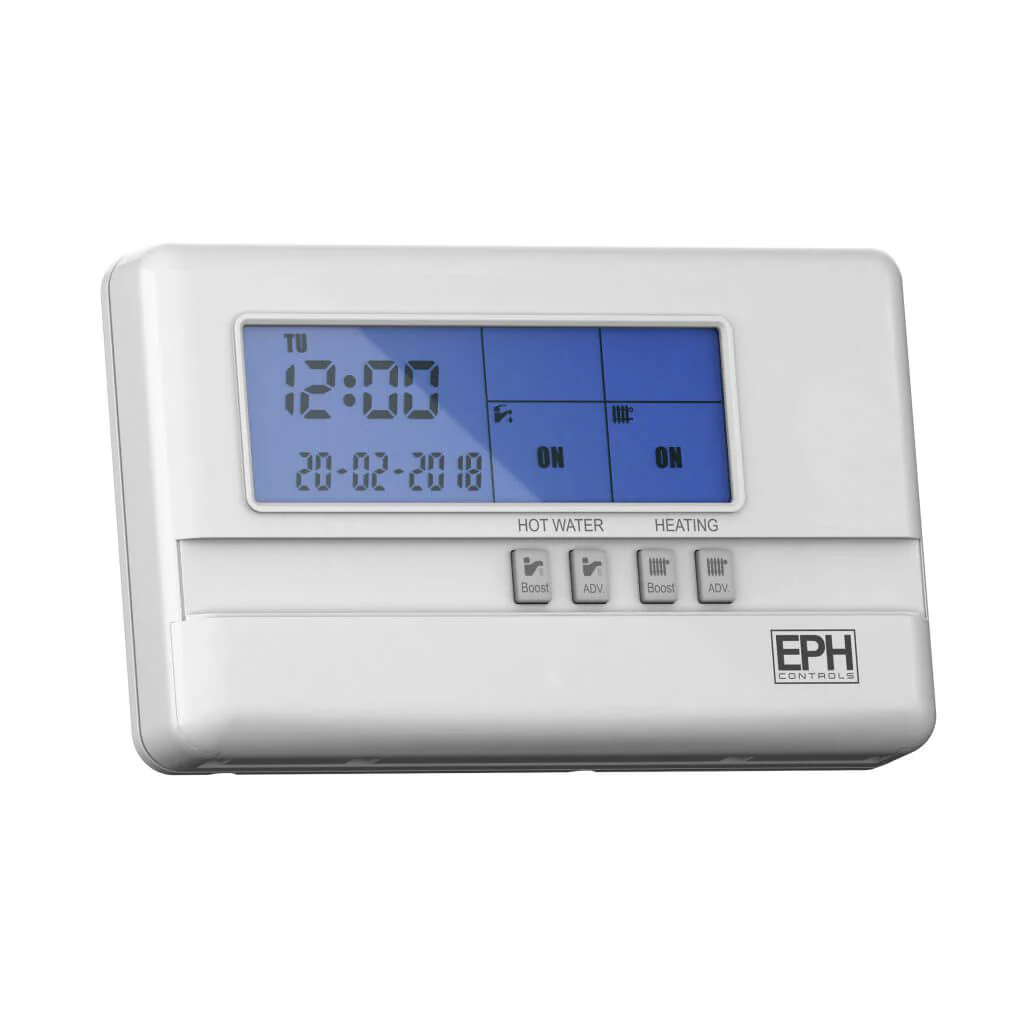

R27-HW – 2 Zone Programmer [Pre 2023]

2 zone programmer with 3 operating modes – 24h, 5/2d & 7 day. Perfect for controlling 2 zones in a central heating system.

• PRODUCT CODE - R27-HW
• SWITCH OUTPUT - 230Vac
• PRODUCT WARRANTY - 5 Year
• SCREEN DIMENSIONS - 100 x 35mm

Switch Rating	3(1)A 230Vac
Ambient Temp Range	0...50˚C
Operating Periods	3 per day
Backplate Type	6 pin

Download

• R27-HW Installation Instructions
• R27-HW Operating Instructions
• R27-HW Simplified Instructions
