CM3 - Mechanical Room Thermostat, 3 Wire c/w Light

Product image 1
Product image 2

CM3 - Mechanical Room Thermostat, 3 Wire c/w Light

Direct from EPH - Delivery Lead time 4-5 Working days :Ā  Live ChatĀ /Ā 01985 850982

Ā

CM3 -Ā  Mechanical Room Thermostat, 3 Wire c/w Light

The room temperature is measured using an internal gas filled sensor and then compared with the set point. When the set point is above the room temperature, there is a call for heat and the thermostat switches out on terminal 2. When the set point is below the room temperature, there is no call for heat and the thermostat switches out on terminal 1.

  • Product CodeĀ  - CM3
  • Temperature Range Ā  -Ā 5 ... 35˚C
  • ContactĀ  -Ā  SPDT
  • Lockable Range Ā -Ā Yes
  • Heat Anticipator Ā  -Ā Yes

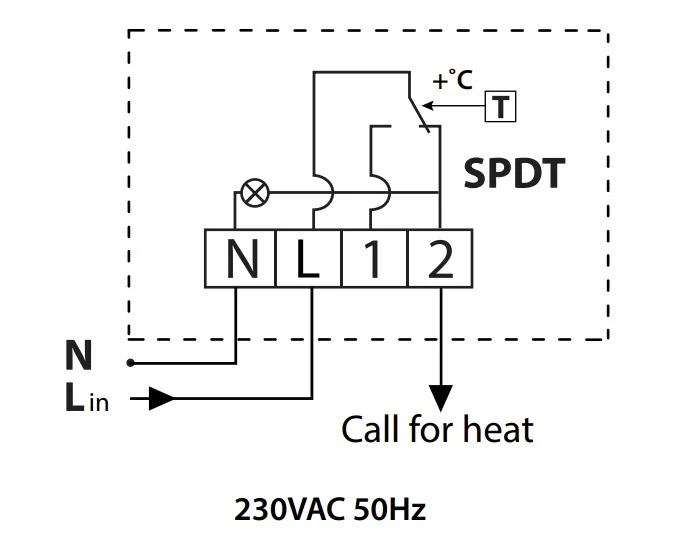

EPH CM3 Wire Diagram

$6.52

Original: $21.74

-70%
CM3 - Mechanical Room Thermostat, 3 Wire c/w Light—

$21.74

$6.52

Product Information

Shipping & Returns

Description

Direct from EPH - Delivery Lead time 4-5 Working days :Ā  Live ChatĀ /Ā 01985 850982

Ā

CM3 -Ā  Mechanical Room Thermostat, 3 Wire c/w Light

The room temperature is measured using an internal gas filled sensor and then compared with the set point. When the set point is above the room temperature, there is a call for heat and the thermostat switches out on terminal 2. When the set point is below the room temperature, there is no call for heat and the thermostat switches out on terminal 1.

  • Product CodeĀ  - CM3
  • Temperature Range Ā  -Ā 5 ... 35˚C
  • ContactĀ  -Ā  SPDT
  • Lockable Range Ā -Ā Yes
  • Heat Anticipator Ā  -Ā Yes

EPH CM3 Wire Diagram
