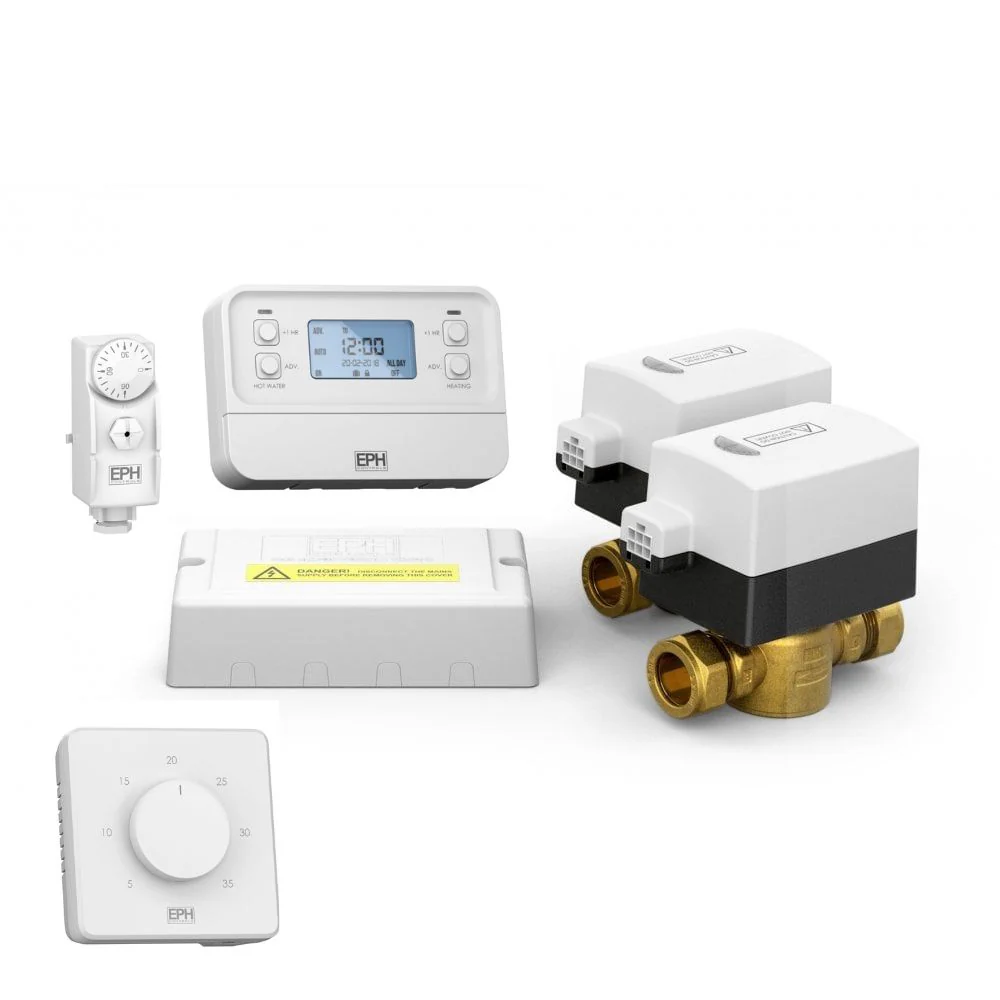

CA228P - Pack c/w A27-HW, 2 x V228P, CM2, WRP & WC2 S Plan Heating Control Packs

Direct from EPH - Delivery Lead time 4-5 Working days :  Live Chat / 01985 850982



EPH Controls’ range of hardwired programmers offers a comprehensive solution for all zoning requirements with models available from 1 to 4 channels. With market-leading functionality such as auto summer winter time, boost, advance and service interval these programmers, offer simple design functionality and are ideally suited to householders.

Includes

1 x A27-HW – 2 Zone Programmer

2 x V228P  - 2 Port Valve – 28mm compression 6.8 kvs 0.6 bar

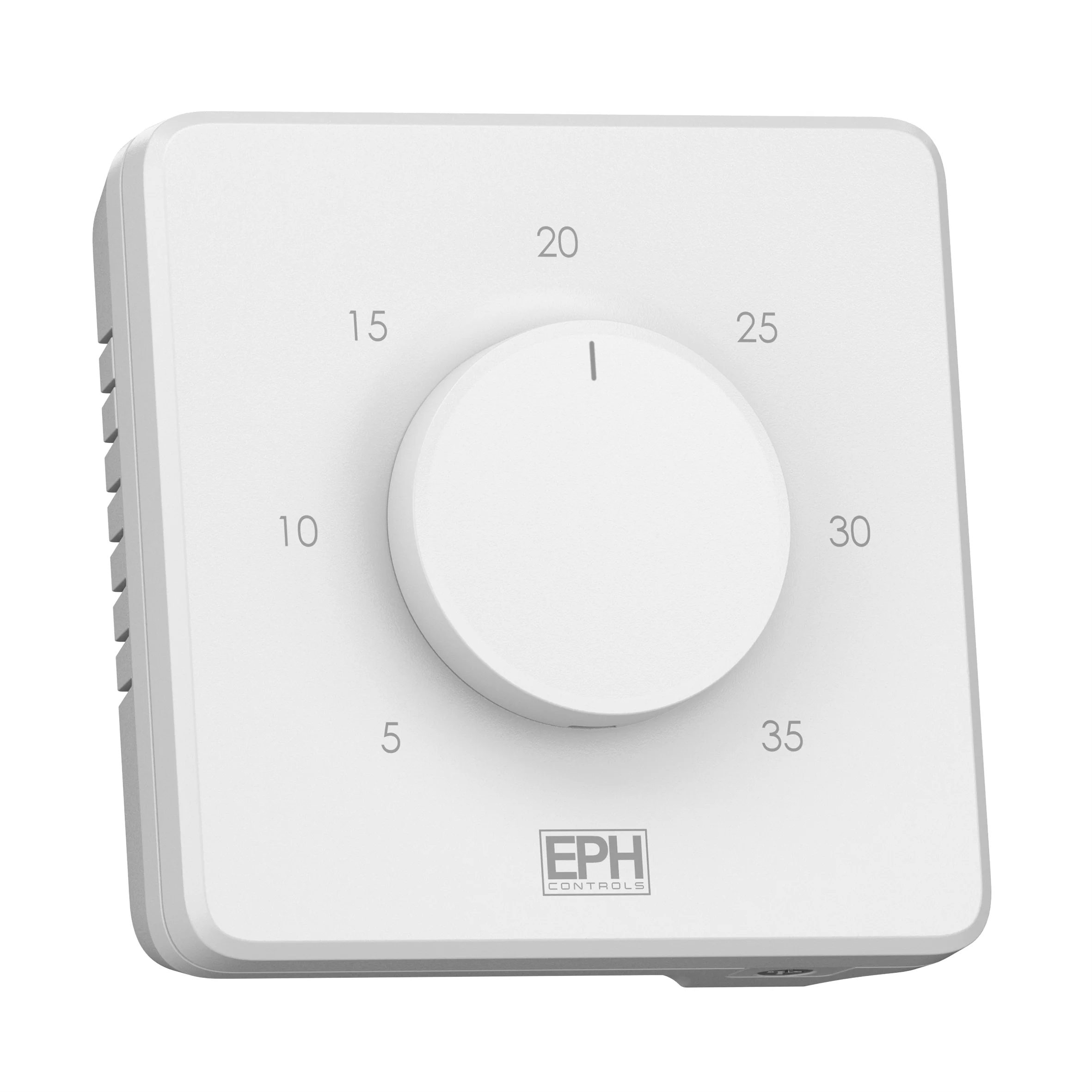

1 x CM2 Thermostat

1 x WRP Pipe / Cylinder Thermostat

1 x WC2 - Wiring Centre – Block Connector Strip



1 x A27-HW – 2 Zone Programmer

2 zone programmer with 3 operating modes – 24h, 5/2d & 7 days. Perfect for controlling 2 zones in a central heating system.

PRODUCT CODE	SWITCH OUTPUT	PRODUCT WARRANTY	SCREEN DIMENSIONS
A27-HW	230Vac	2 Year	51 x 23mm

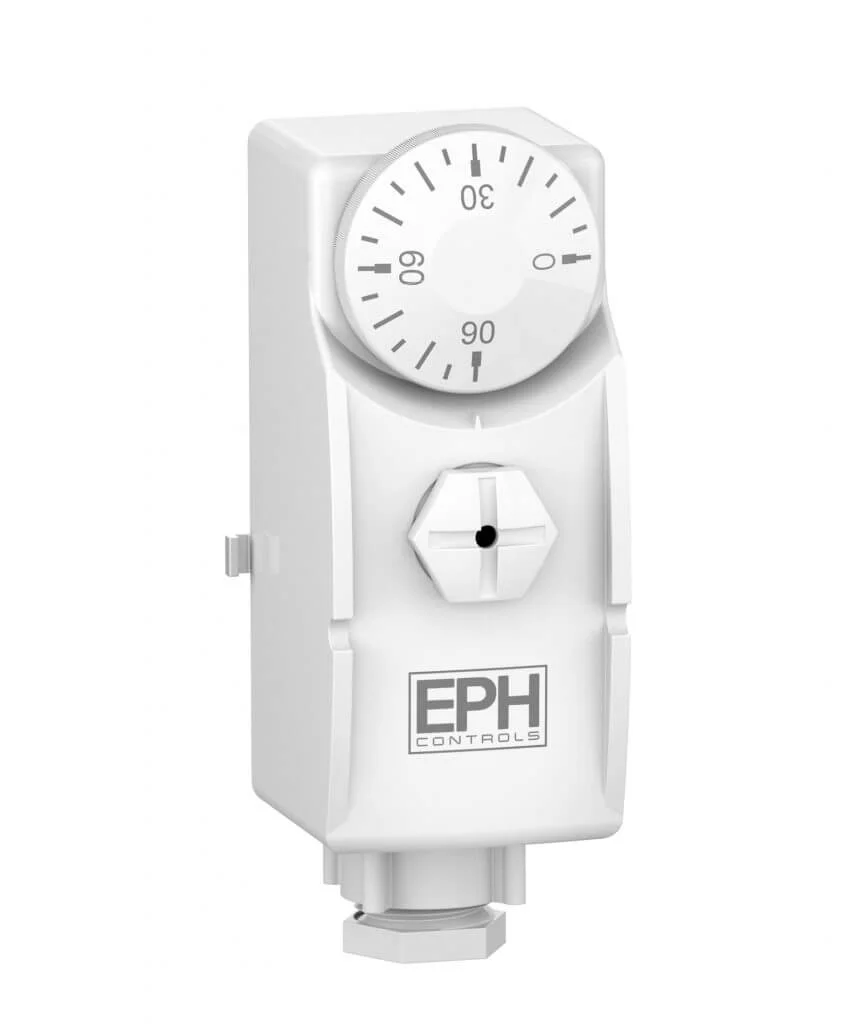

1 x Pipe / Cylinder Thermostat

Pipe / Cylinder thermostat suitable for controlling hot water cylinders or central heating pumps. Available in both standard and tamperproof versions.

Technical Data

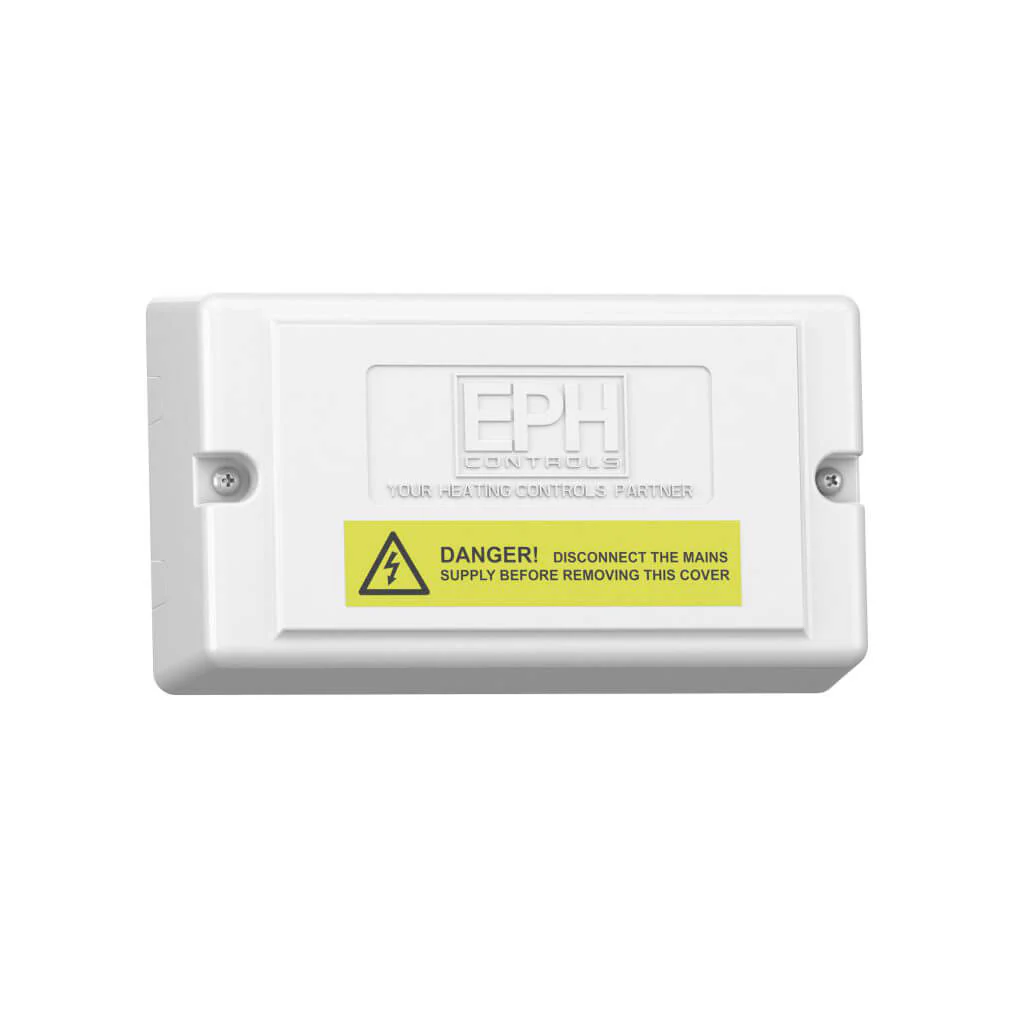

WC2 -  12 Way Wiring Centre – Block Connector Strip

Wiring centres for use in central heating systems.

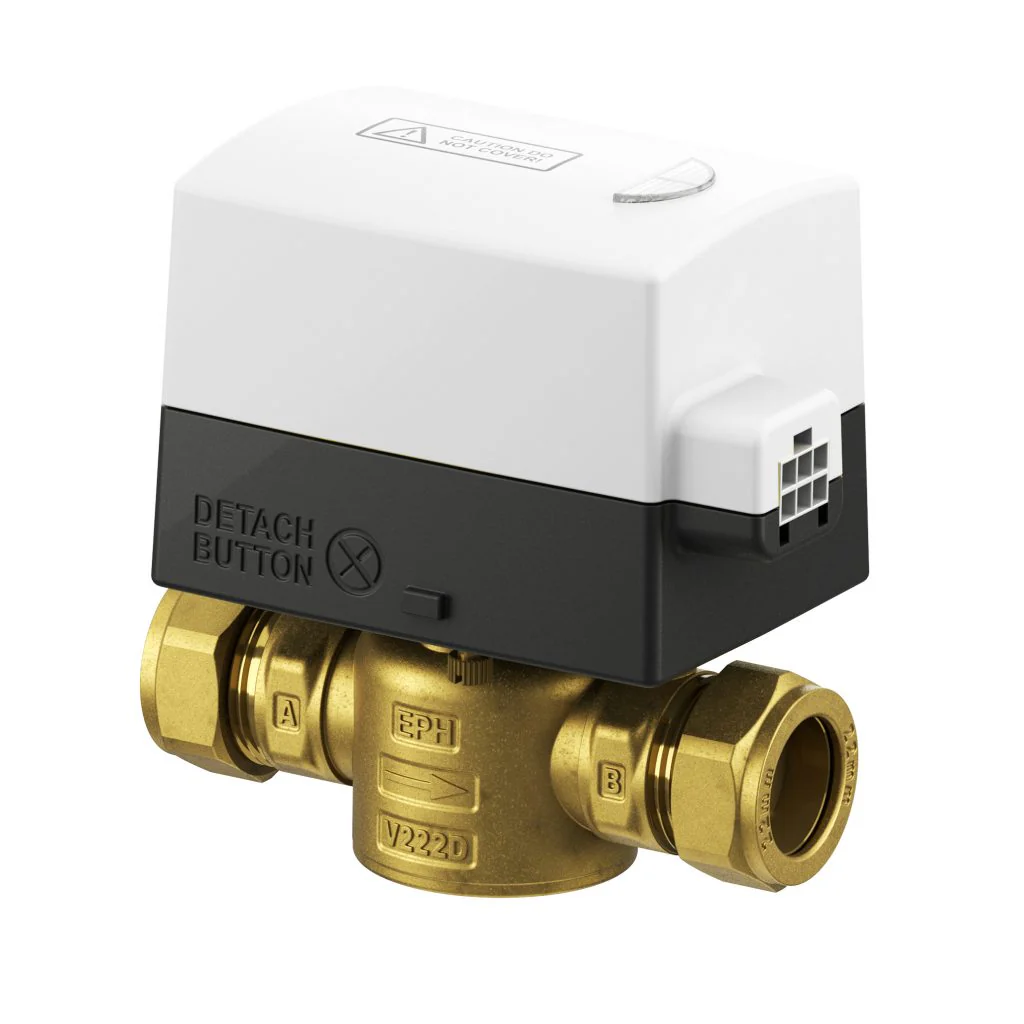

V228P - 2 Port 28mm Compression Motorised Valve

2 port compression motorised valves with detachable actuator, detachable cable and power on light. These motorised valves are the perfect solution for zoning your hot water or central heating circuits.

• V228P
• CONNECTION TYPE - 28mm compression
• FLOW RATE 6.8 kvs
• MAX. CLOSE OFF PRESSURE - 0.6 bar

Switch Rating	11(3)A 230Vac
Max Ambient Temp	50˚C
Max Fluid Temp	88˚C



Download

• V228P Datasheet
