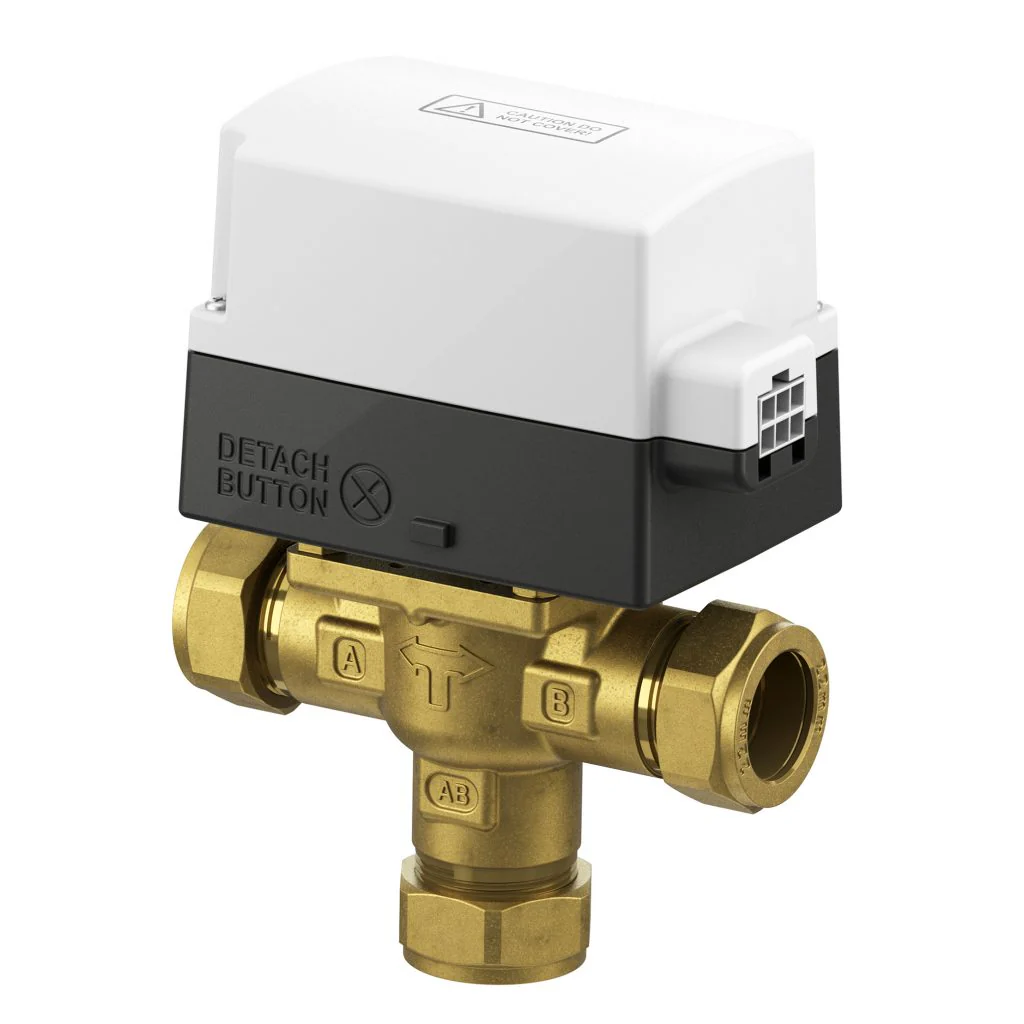

B328PF - 3 Port 28mm Mid Position / Diverter Valve

Product image 1
Product image 2

B328PF - 3 Port 28mm Mid Position / Diverter Valve

Direct from EPH - Delivery Lead time 4-5 Working days :Ā  Live ChatĀ /Ā 01985 850982

Ā

3 port compression motorised valves with detachable actuator and detachable cable. These motorised valves are the perfect solution for zoning your hot water or central heating circuits.

Technical Data

PRODUCT CODE CONNECTION TYPE FLOW RATE MAX. CLOSE OFF PRESSURE*
B322PF 22mm compression 4.6 kvs 1.6 bar (A) 1.2 bar (B)
B328PF 28mm compression 6.8 kvs 1.2 bar (A) 0.8 bar (B)
Switch Rating 5(2)A 230Vac
Max Ambient Temp 50ĖšC
Max Fluid Temp 88ĖšC

Ā

B322PF - 3 Port 22mm Mid Positio

Download

B32_PF Datasheet
