B322DIV - 3 Port 22mm Diverter Valve

Name: B322DIV - 3 Port 22mm Diverter Valve
Brand: BEE
SKU: b322div-3-port-22mm-diverter-valve
Availability: InStock

Direct from EPH - Delivery Lead time 4-5 Working days : Live Chat / 01985 850982

3 Port Compression Diverting valve designed for the use in heating systems with both hot water cylinders and heating circuits.

Lead Supplied - 1.2 meter Cable. 3 core. Eath Connection required

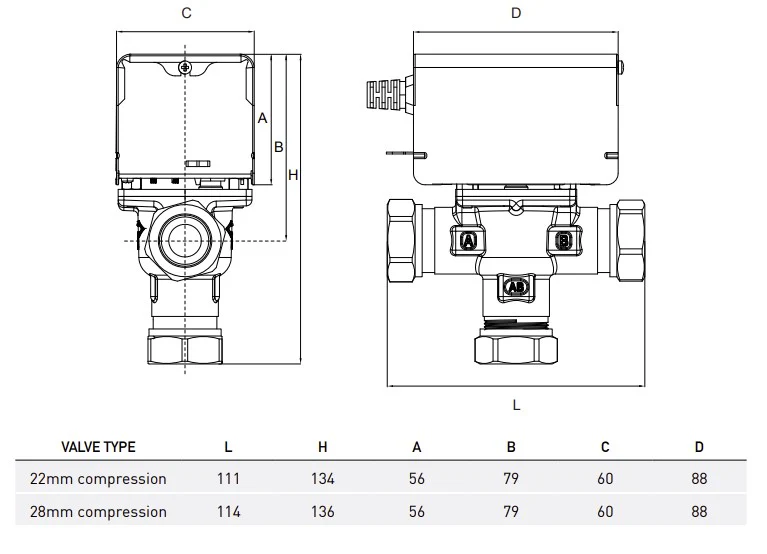

Technical Data

PRODUCT CODE	CONNECTION TYPE	FLOW RATE	MAX. CLOSE OFF PRESSURE*
B322DIV	22mm compression	7.1 kvs	1.6 bar (A) 1.2 bar (B)
B328DIV	28mm compression	7.6 kvs	1.2 bar (A) 0.8 bar (B)

$29.65

Original: $98.85

-70%

B322DIV - 3 Port 22mm Diverter Valve—

$98.85

$29.65

Original: $98.85

-70%

B322DIV - 3 Port 22mm Diverter Valve—

$98.85

$29.65

Direct from EPH - Delivery Lead time 4-5 Working days : Live Chat / 01985 850982

3 Port Compression Diverting valve designed for the use in heating systems with both hot water cylinders and heating circuits.

Lead Supplied - 1.2 meter Cable. 3 core. Eath Connection required

PRODUCT CODE	CONNECTION TYPE	FLOW RATE	MAX. CLOSE OFF PRESSURE*
B322DIV	22mm compression	7.1 kvs	1.6 bar (A) 1.2 bar (B)
B328DIV	28mm compression	7.6 kvs	1.2 bar (A) 0.8 bar (B)
