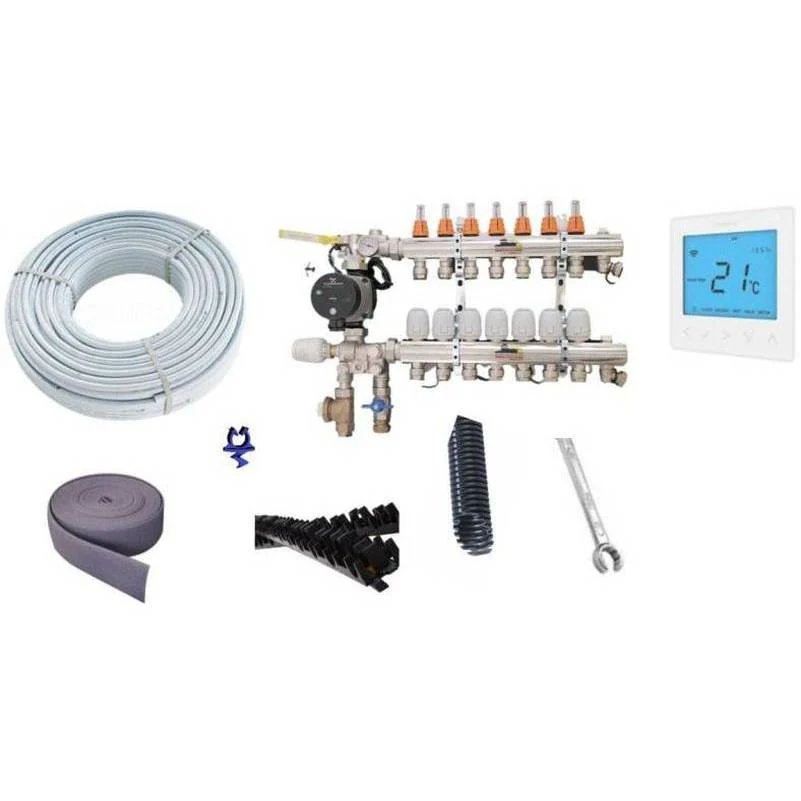

6 Port Underfloor Heating Screed Floor Kit - Wireless Control - upto 95sqm

Our underfloor heating kits are designed for fast, easy installation on top of insulation, prior to covering with liquid (anhydrite) or traditional sand and cement screed.
• High quality stainless steel manifold with flow adjusters and return handwheels
• Mixing unit with Grundfos pump
• 22mm copper fittings for flow and return connections
• Fränkische 16mm profitherm-al multi layer pipe – 100 meters per port
• Manifold pipe fittings for 16×2.0mm for multi/pex
• neoAir Wireless Thermostat & RF Switch
• Edge insulation 8x150mm – 25m roll

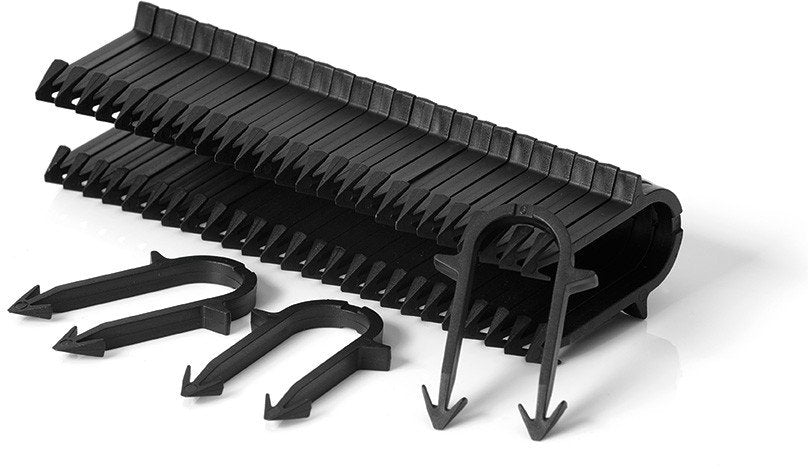

• 60mm black pipe clips, box of 300

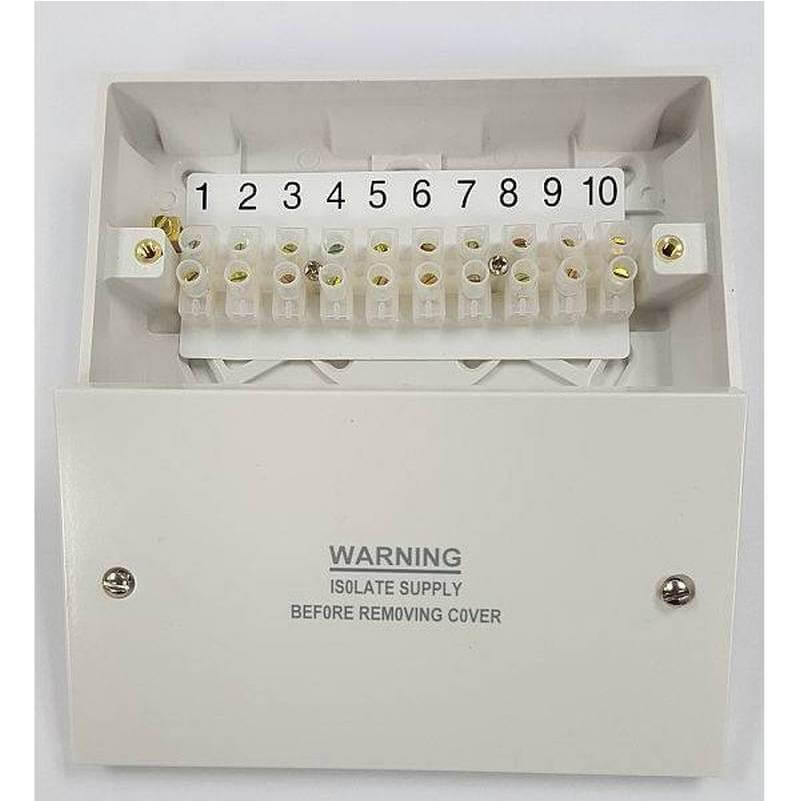

• 10 way terminal junction box
• Delivery to mainland UK

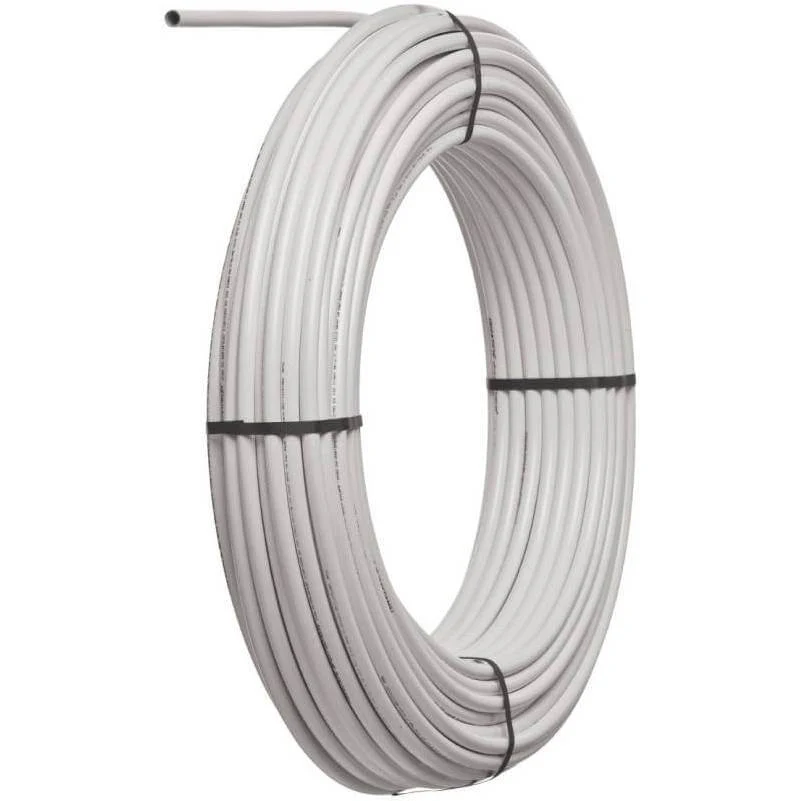

profitherm AL multi layer pipe 16x2mm coils of 100 metres

standardized inner and outer pipe in acc. with EN ISO 22391 made of polyethylene of raised temperature resistance
(PE-RT – adhesive – butt-welded aluminium pipe –adhesive – PE-RT)

• 100% – oxygen resistant by aluminium core
• Max. operating temperature 70°C
• Max . 6 Bar or pressure



Grundfos Manifold Pump & Mixing Valve Unit

A compact prefabricated pack designed to thermostatically control the temperature of water within an underfloor heating system. The kit includes the thermostatic mixing valve, an ERP rated 7 metre circulating pump, and a flow manifold connection tee piece which includes a ½” FBSP tapping that can be used for reading temperatures and pressures or as a connection point

• The thermostatic unit gives excellent temperature stability particularly when return temperatures and mixed water temperatures are close to equal
• The system is designed to be fully flexible and can be fitted on either left or right sides of the manifold, with the return at top or bottom
• The mixing valve will function down to 25°C to ensure that initial warm-up and commissioning can be correctly carried out
• The side profile of the valve is reduced to allow easy fitting of the pack inside cabinets
• Features a temperature range from 25°C up to 60°C to cater for all types of floor constructions
