The IWTM Protector™ range includes the smallest models, Protector P1-P5. These models, P1, P2, and P5, are each equipped with two separate treatment chambers that effectively remove impurities and prevent water from becoming corrosive.

It provides a “hybrid/multipurpose function” that eliminates the use of chemicals, deaerators, and magnetic separators

IWTM Protector P1-P5

Faster clean-up & compliance with pre commissioning targets - Higher flow rates through reaction tank & inbuilt strainer basket for finer filtration - Dry powerful magnet holds magnetite particles while system water passes through high grade 40-micron stainless steel filter to prevent re-entry - Non-magnetic particles trapped in micron filter and released when blown down to clear debris.

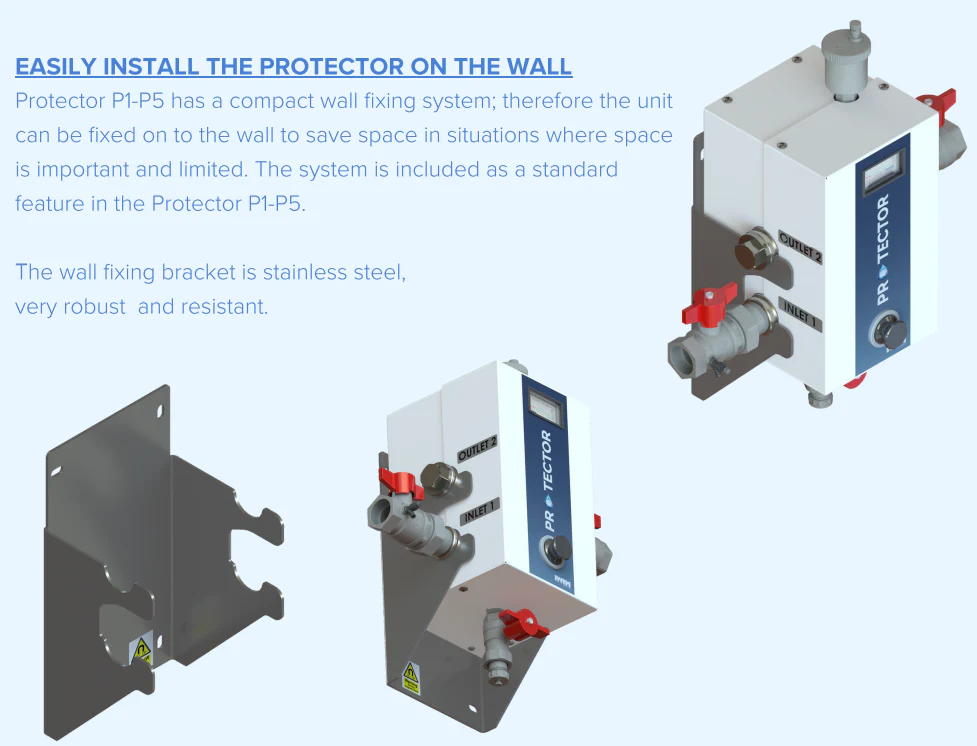

EASILY INSTALL THE PROTECTOR ON THE WALL

Protector P1-P5 has a compact wall fixing system; therefore the unit can be fixed on to the wall to save space in situations where space is important and limited. The system is included as a standard feature in the Protector P1-P5.

The wall fixing bracket is stainless steel, very robust and resistant.

New - IWTM Protector P1-P5

DETAILED EXTERNAL & INTERNAL VIEW

Protector P1-P5 DETAILED EXTERNAL & INTERNAL VIEW P1

TECHNICAL DATA

IWTM Protector P1 P2 P5 TECHNICAL DATA

Protector P1-P5 datasheet download here

VALVE KIT - UK Installation Kit (also available for outside UK)
P2-P5 all times, P1 when used in side stream

DIMENSIONS

PROTECTOR P1

PROTECTOR P1 DIMENSIONS

PROTECTOR P2

PROTECTOR P2 DIMENSIONS

PROTECTOR P5

PROTECTOR P5 DIMENSIONS

MAINTENANCE

When the progressive build-up of suspended solids retained by the stainless-steel screen causes a reduction in flow, the screen must be cleaned. To perform the cleaning operations, there are two options either a normal backflush of the filter, or by complete removal and washing of the filter.

FUNCTIONS
Prevents Corrosion - Protector’s water treatment features prevent corrosion in the system. This is achieved thanks to magnesium anodes that lower oxygen, regulate pH, and reduce electrical conductivity.

All In One - Protector is an ˝all in one solution˝. It combines several different technologies in one single extremely functional and reliable device.

Traps Ferrous Particles - Protector is equipped with Neodymium Magnets that trap ferrous particles, drastically increasing the time before manual intervention is needed.

Removes Contamination - Protector cleans and restores recirculating systems by removing suspended particles.

SIDE STREAM USING SYSTEM PUMP

Protector P1-P5 is completely insulated and cladded to prevent heat loss and condensation. P1 can be installed both side stream and full flow. P2-5 is installed as a side stream device only.

IWTM Protector P1-P5 SIDE STREAM USING SYSTEM PUMP

SIDE STREAM USING INDIVIDUAL PUMP

Protector P1-P5 keeps your system clean with the filtering element, removing suspended particles from the recirculating system.

SIDE STREAM USING INDIVIDUAL PUMP

PARTICLE FILTRATION
MAGNETIC PROTECTION
REDUCES DISSOLVED OXYGEN
CORROSION PREVENTION

DETAILED EXTERNAL & INTERNAL VIEW

TECHNICAL DATA

DIMENSIONSPROTECTOR P1

PROTECTOR P2

PROTECTOR P5

MAINTENANCE

SIDE STREAM USING SYSTEM PUMP

SIDE STREAM USING INDIVIDUAL PUMP

DIMENSIONS

PROTECTOR P1
