The Prescor pressure reducing valve stabilizes the fluid pressure in a water distribution systems to a preset value. It is used on potable water installations for water supply within buildings according to EN 806-2.

Working principle The Prescor PRV can be adjusted to the required working pressure by turning the regulation knob, this then adjusts the calibration spring pressing against the membrane which in this case then acts against the valve cartridge. The water pressure downstream of the pressure reducing valve maintains a pressure in the opposite direction, balancing the valve closed. When the valve is closed, the two forces are balanced, while there is a flow, the downstream pressure decreases and the spring overcomes the pressure, thus opening the valve and allowing the water to pass through.

Comfort and efficiency without noise and vibrations The special internal construction of the valve body with perfect finished surface has been designed to create a minimum flow resistance, limiting vibrations and pressure loss.

Pressure Reducing Valves

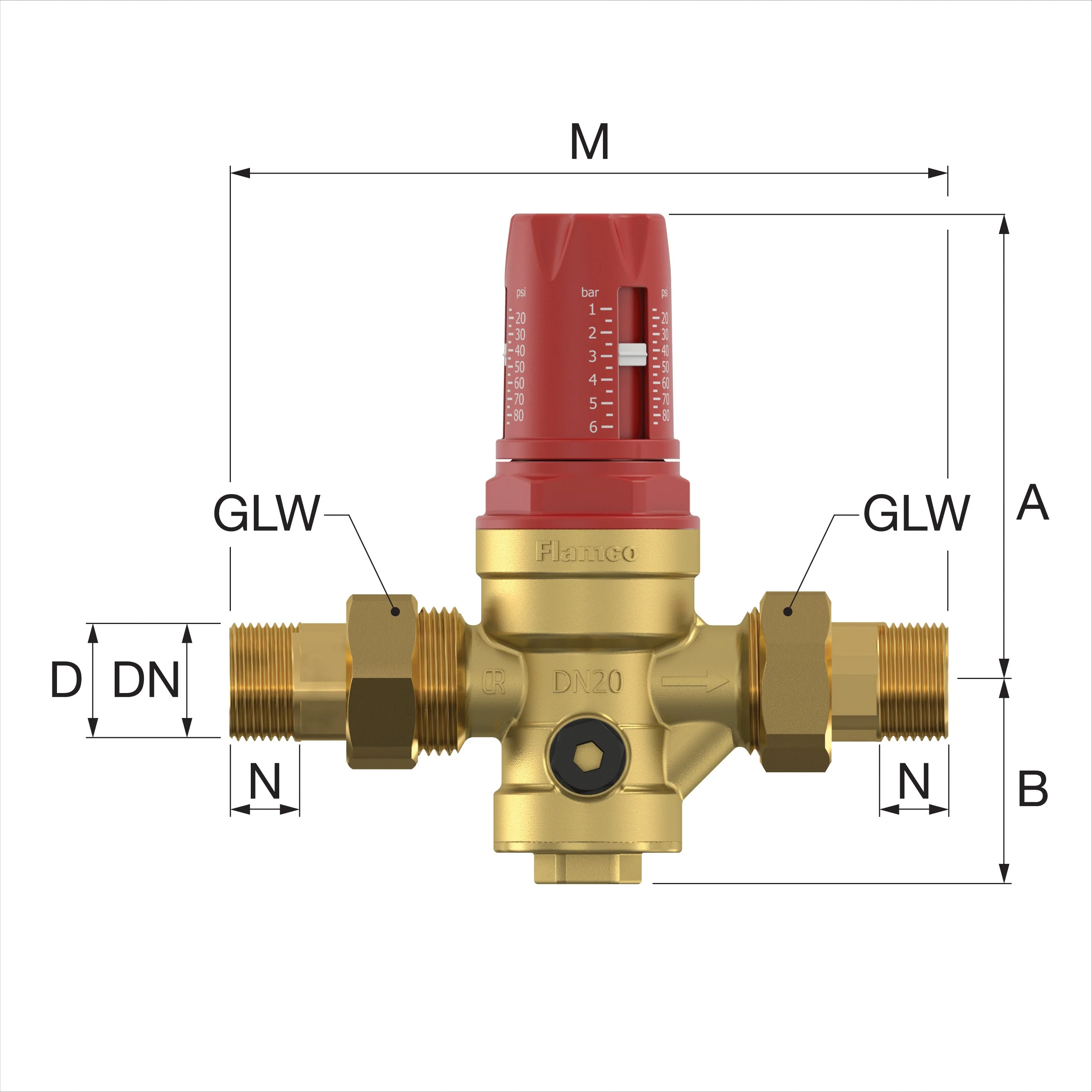

Prescor PRV Pressure Reducing valve

Dial-up pressure reducing valve With & Without gauge

Screwed iron dial-up pressure reducing valve with gauge

INTA Pressure Reducing Valve: 3/4" PRESSURE REDUCING VALVE WITHOUT GAUGE

Mini Pressure Reducing Valve
